Fujitsu PRIMERGY TX100 S2 - Service Supplement TX100 S2

110 Service Supplement TX100 S2
Replacement routines

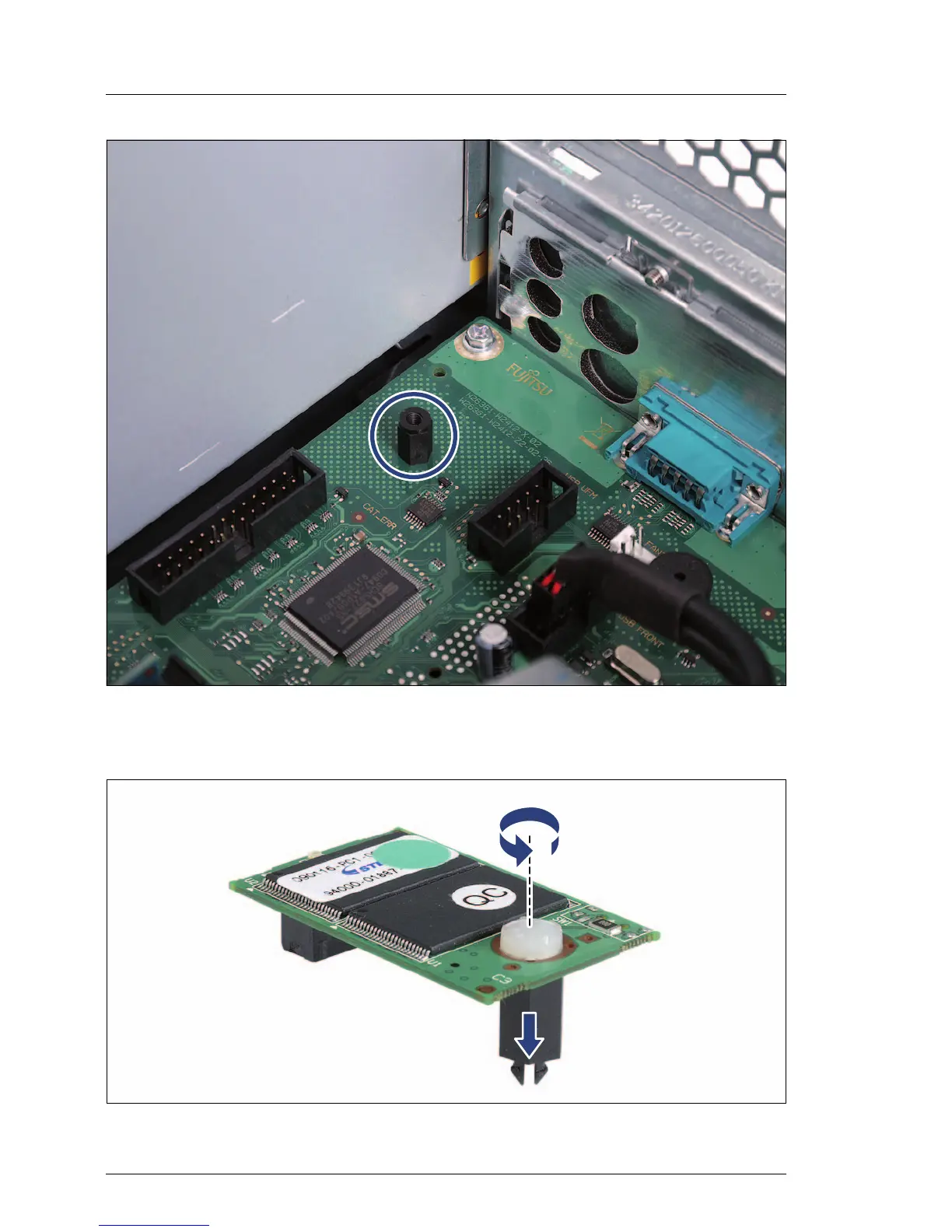

Figure 94: Removing the UFM board (B)
Ê The UFM spacer remains on the system board.
Figure 95: Preparing the replacement UFM board
