Fujitsu PRIMERGY TX100 S2 - Installing the Front USB Module

TX100 S2 Service Supplement 55
Replacement routines
4.3.2 Installing the front USB module

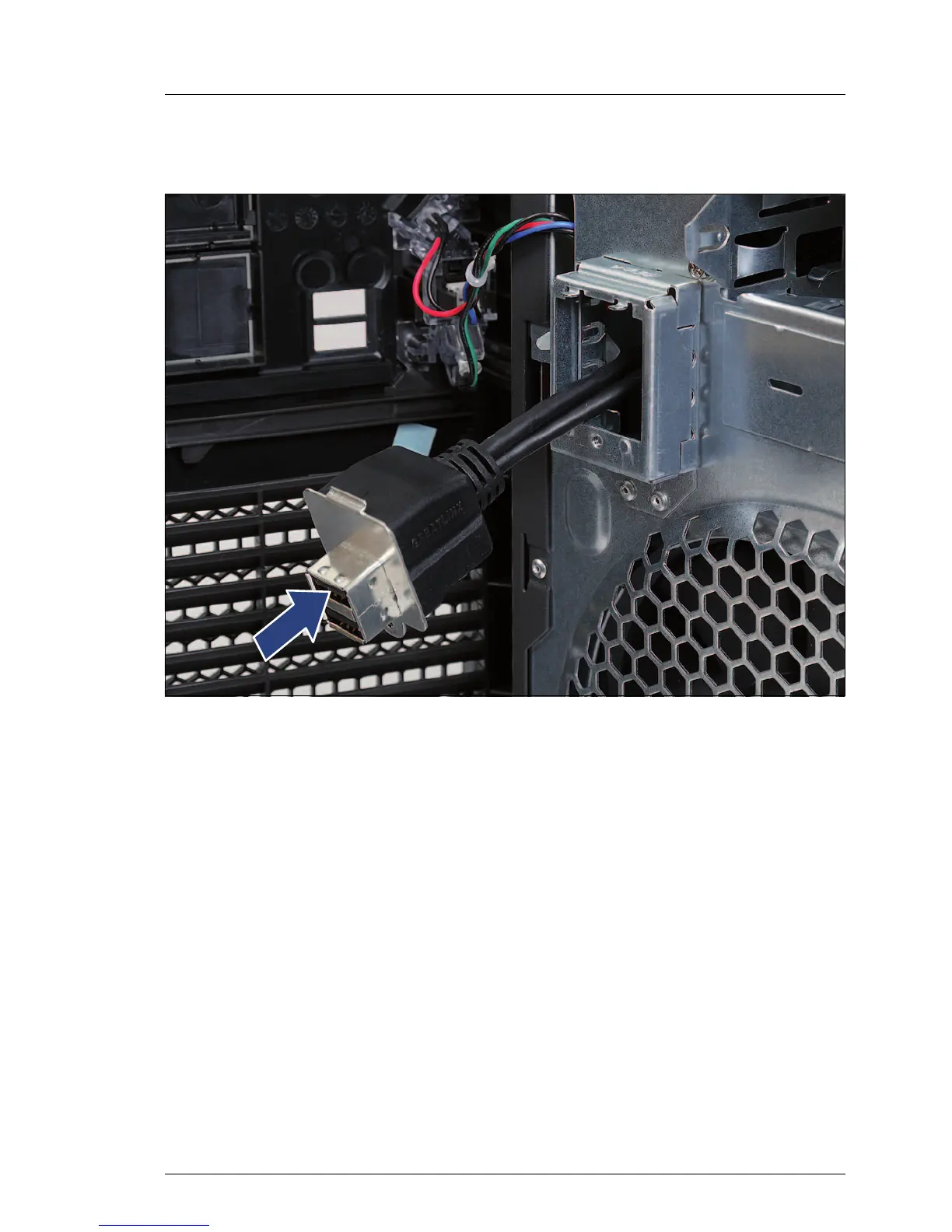

Figure 35: Installing the front USB cable (A)
Ê Thread the new front USB cable (T26139-Y3894-V513) through the recess in
the chassis front.
Ê From inside the server, carefully pull the front USB cable into the chassis.
