56 Service Supplement TX100 S2
Replacement routines

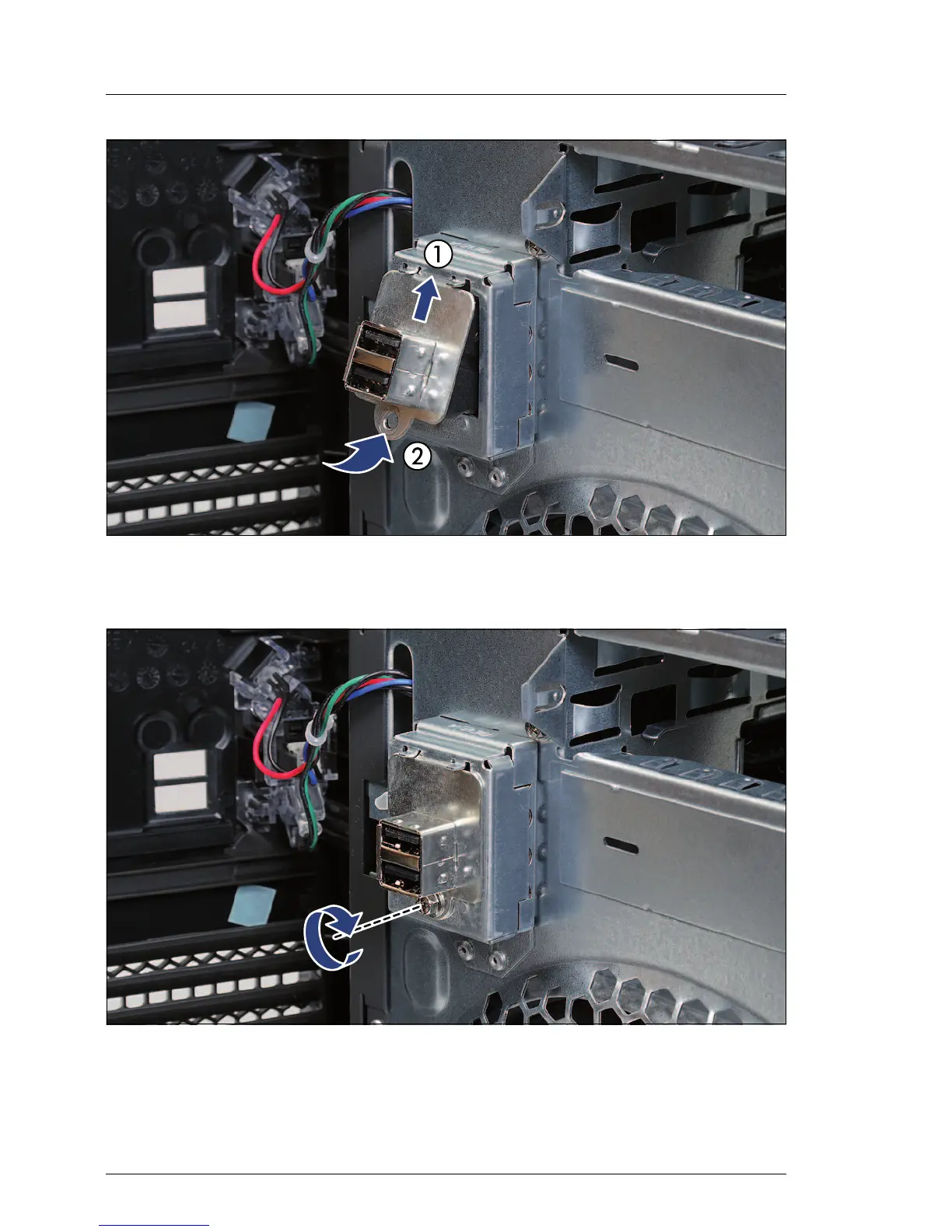

Figure 36: Installing the front USB cable (B)
Ê Hook the front USB mounting plate to the chassis (1) and fold it in (2).
Figure 37: Installing the front USB cable (C)
Ê Secure the front USB mounting plate to the chassis with one screw
(M3x6mm).
