TX100 S2 Service Supplement 67
Replacement routines
4.5 Replacing hard disk drives
Ê Shut down the server and disconnect the AC power cord from the system.
Ê Remove the side cover as described in section 4.1.1.1 on page 23.
Ê Open the HDD cage as described in section 4.1.2.1 on page 25.

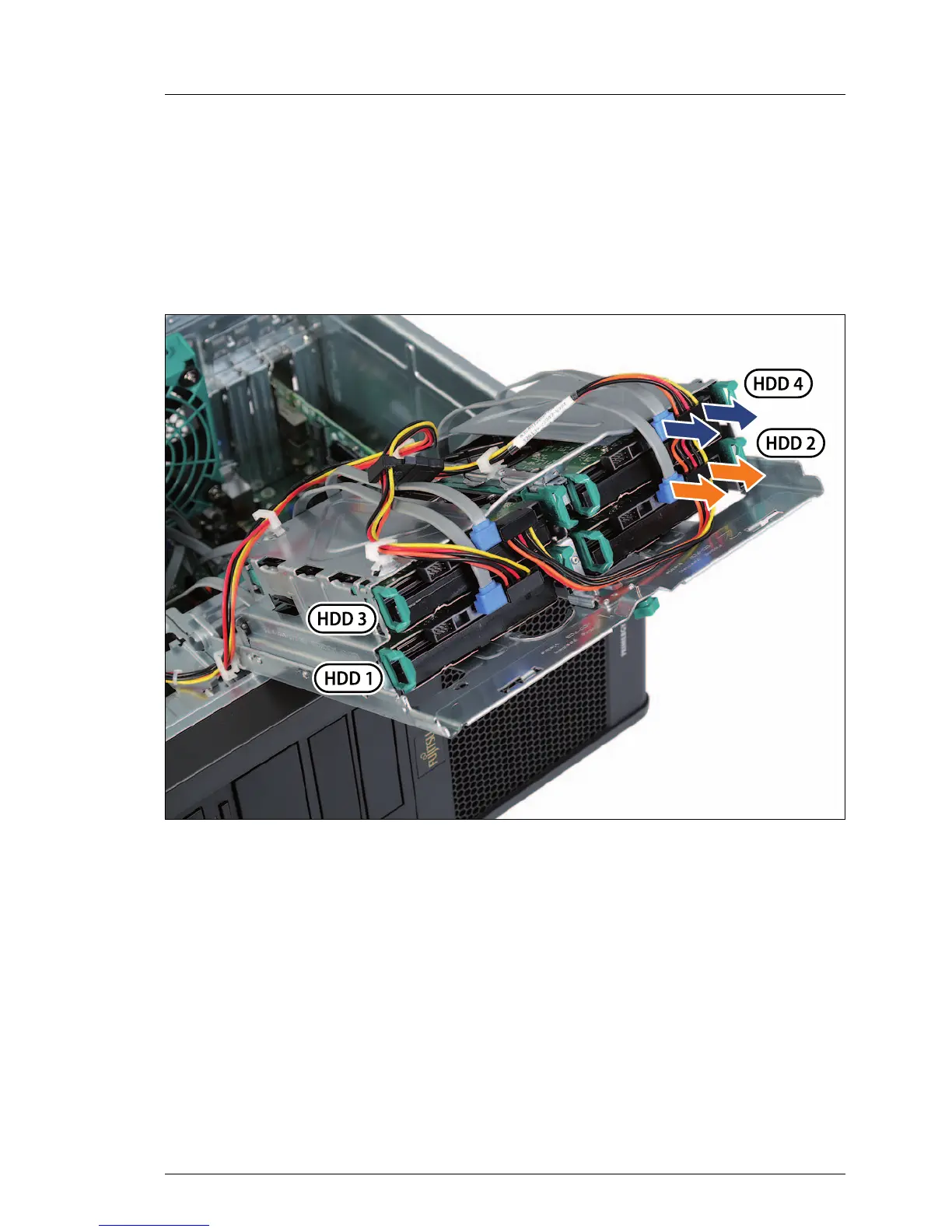

Figure 48: Removing HDD cables
Ê Remove all cables from the desired hard disk drive.
I In 4-HDD configurations, when replacing hard disk drives 3 and / or
4, you will also need to disconnect cables from hard disk drives 1
and / or 2 (see orange arrows).
