70 Service Supplement TX100 S2
Replacement routines
Ê Align the three pins on the Easyclick rails with the screw holes on the new
hard disk drive.

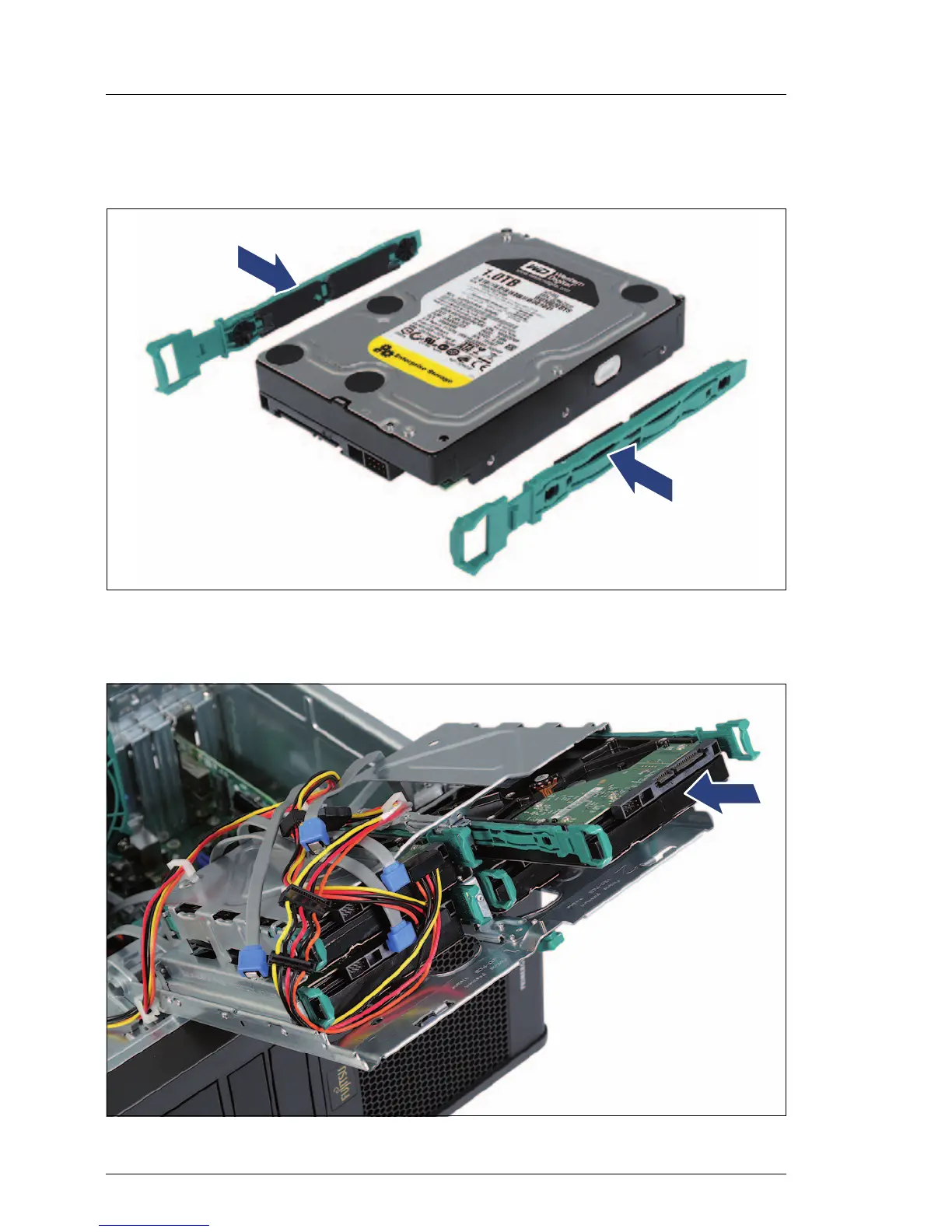

Figure 53: Mounting HDD Easyclick rails (B)
Ê Attach an Easyclick rail on each side of the new hard disk drive.
Figure 54: Installing an HDD
