TX100 S2 Service Supplement 69
Replacement routines
Ê Remove the defective hard disk drive from its installation bay.

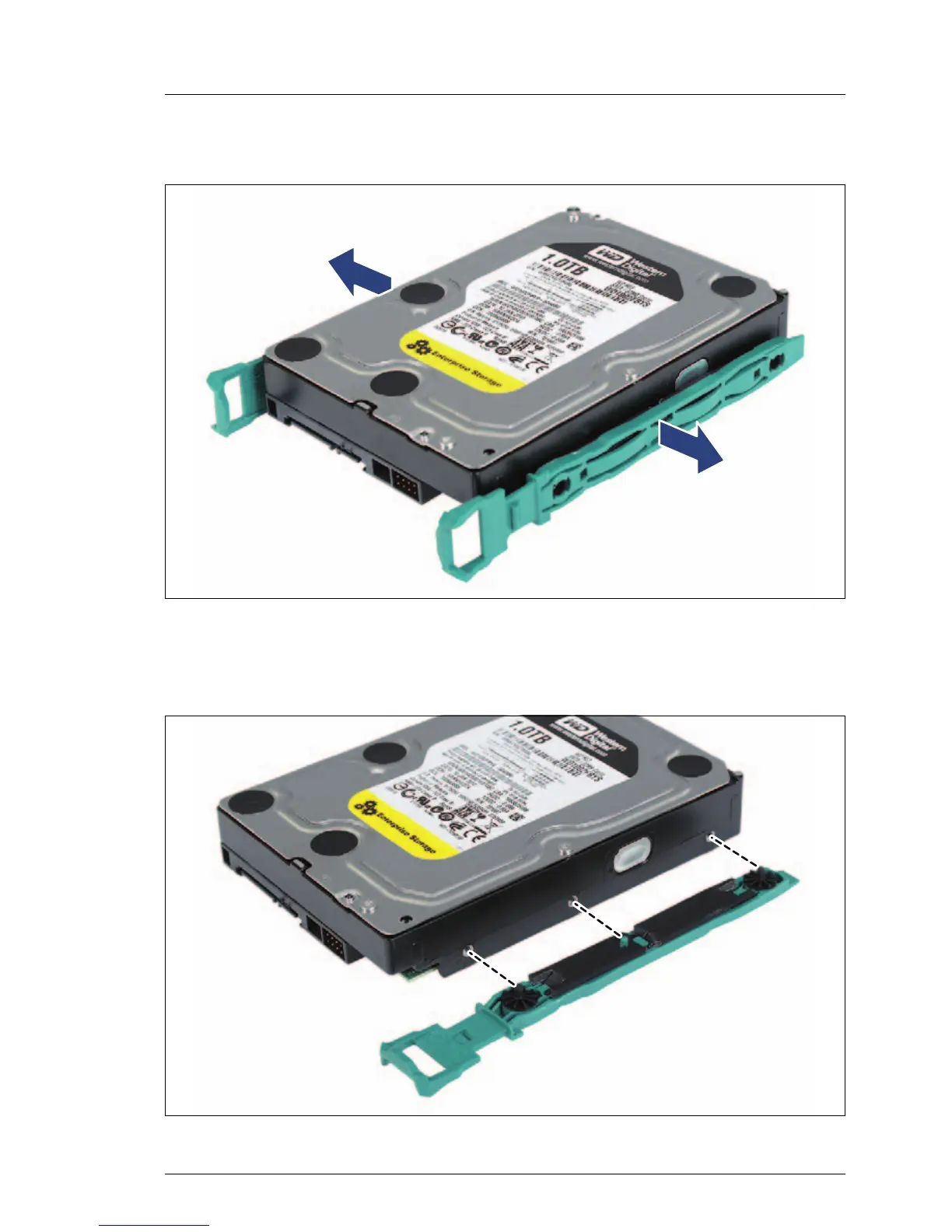

Figure 51: Removing HDD Easyclick rails
Ê Remove the Easyclick rails (C26316-K716-C370) from the defective hard
disk drive.
Figure 52: Mounting HDD Easyclick rails (A)
