TX100 S2 Service Supplement 47
Replacement routines

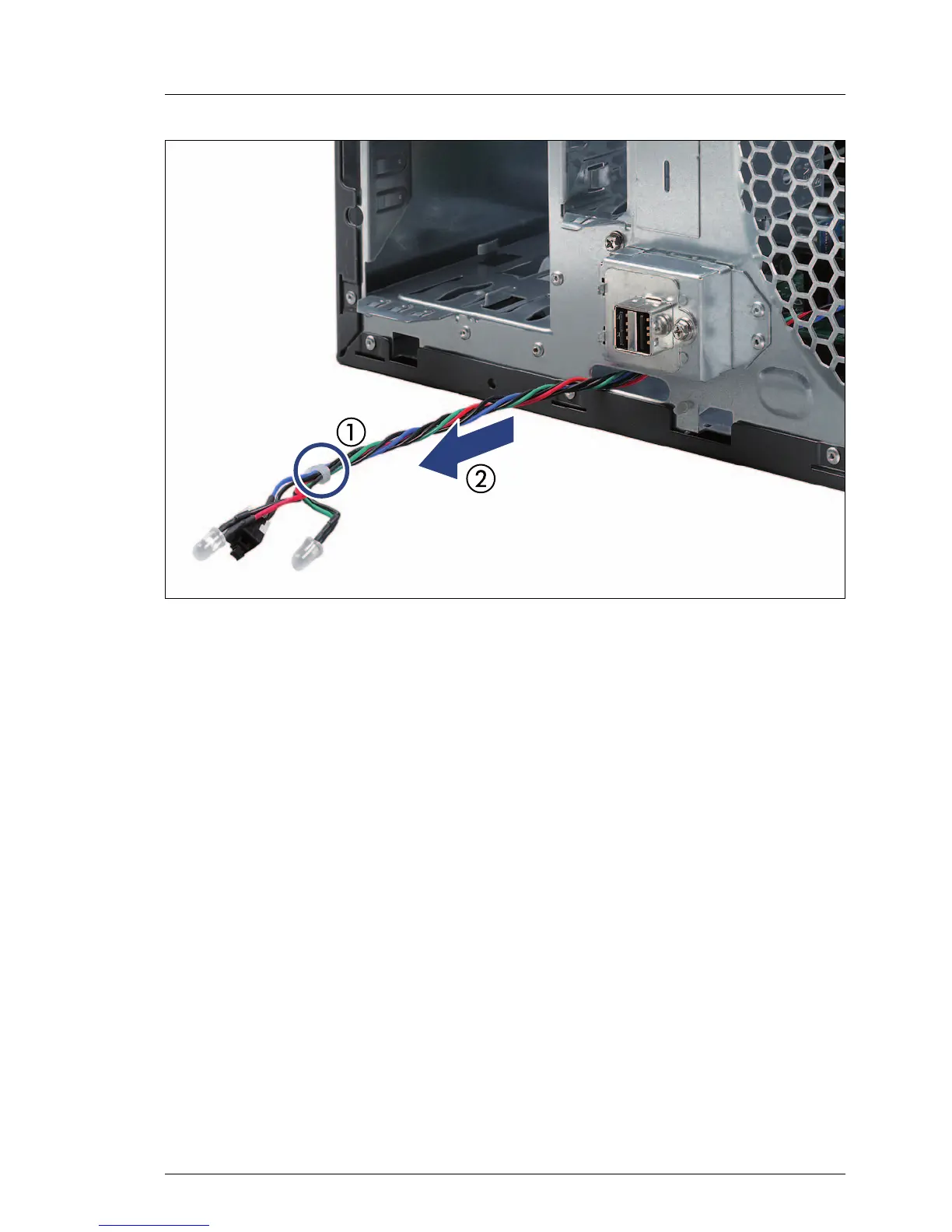

Figure 26: Removing the front panel cable
Ê Thread the cable strap on the front panel cable through the recess in the
chassis front (1).
Ê Carefully pull the front panel cable out of the chassis (2).
Thread the system board connector through the recess in the chassis front
and remove the defective cable.
