TX100 S2 Service Supplement 53
Replacement routines

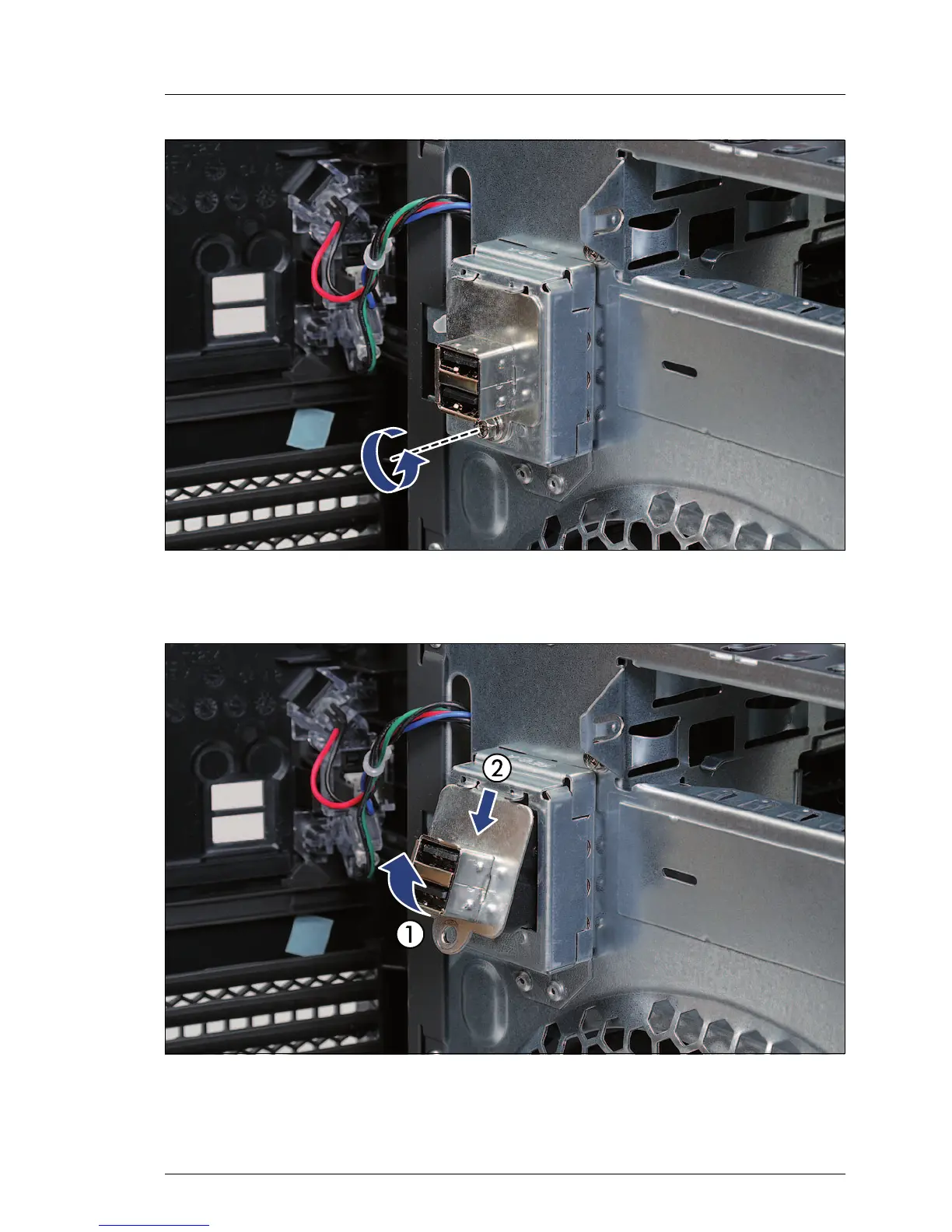

Figure 32: Detaching the front USB cable
Ê Remove one screw from the front USB mounting plate.
Figure 33: Removing the front USB cable (A)
Ê Fold out the front USB mounting plate (1) and unhook it from the chassis (2).
