TX100 S2 Service Supplement 35
Replacement routines

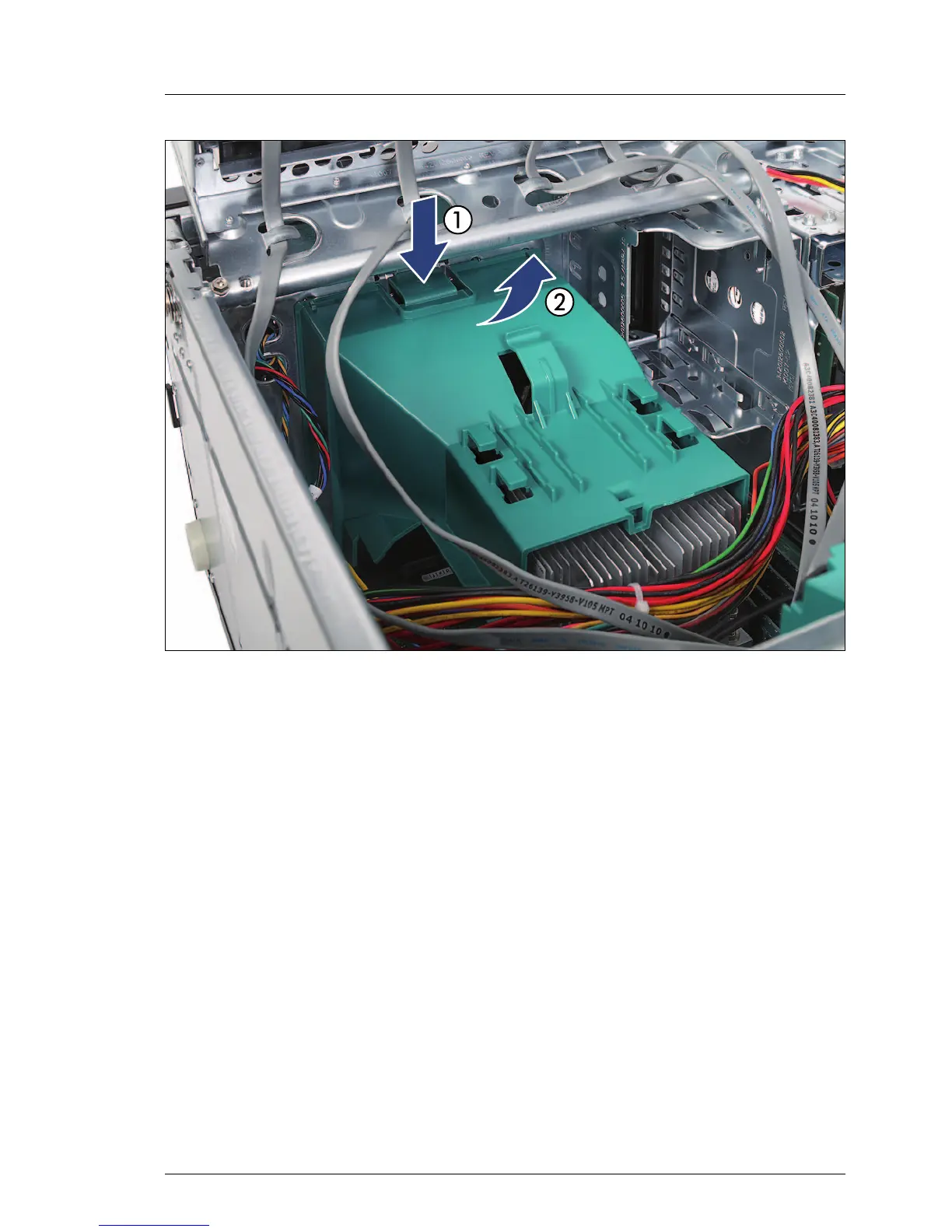

Figure 13: Unlatching the air duct
Ê Press down on the locking latch to detach the air duct (1).
Ê Slightly lift up the locking end of the air duct until the projecting end rests on
the processor heat sink (2).
