38 Service Supplement TX100 S2
Replacement routines

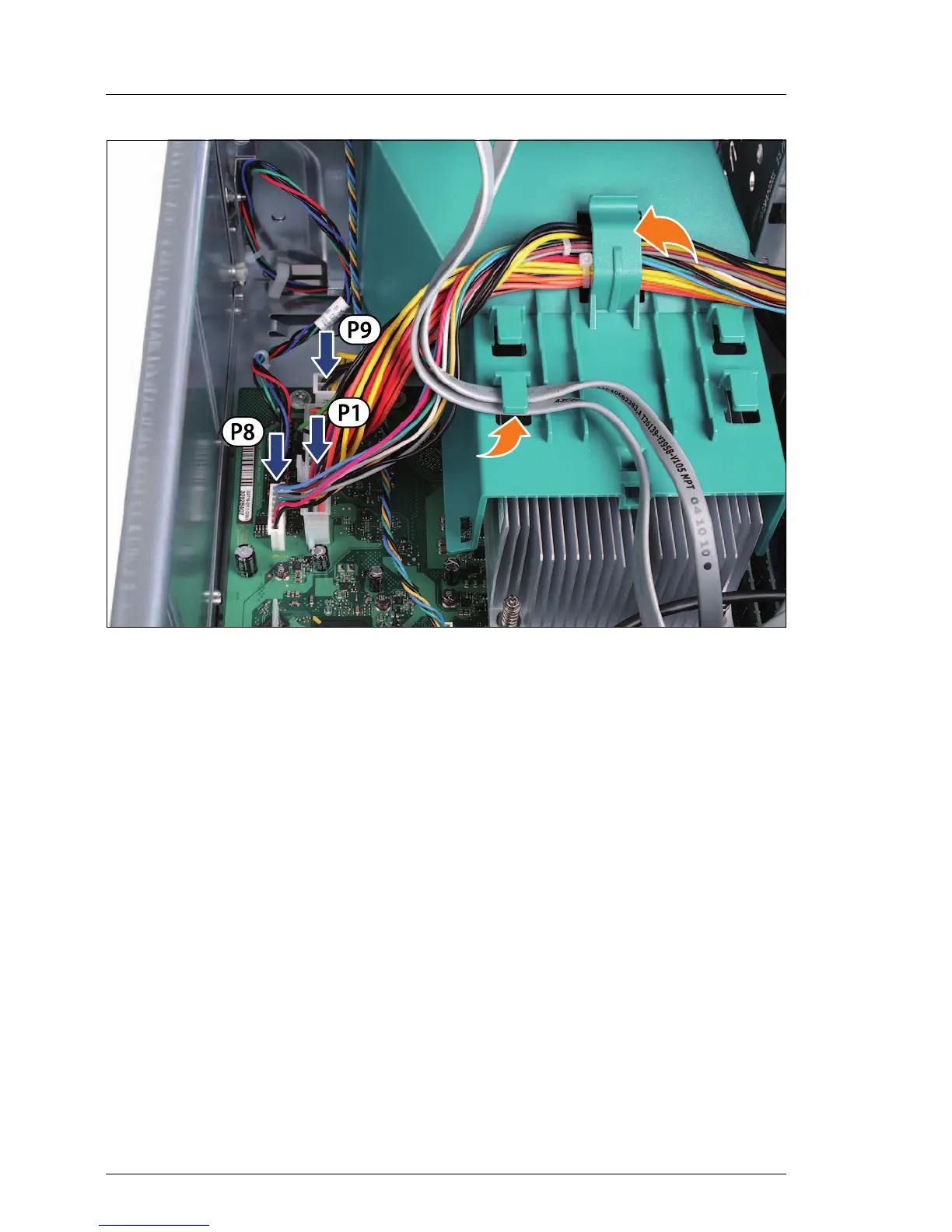

Figure 16: Hooking cables
Ê Hook the power cable harness and SATA cables into the brackets on the air
duct as shown (see orange arrows).
Ê Reconnect power cables P1, P8 and P9 to the system board.
Ê Close the HDD cage as described in section 4.1.2.2 on page 27.
Ê Close the side cover as described in section 4.1.1.2 on page 24 and
reconnect the AC power cord.
