TX100 S2 Service Supplement 61

Replacement routines

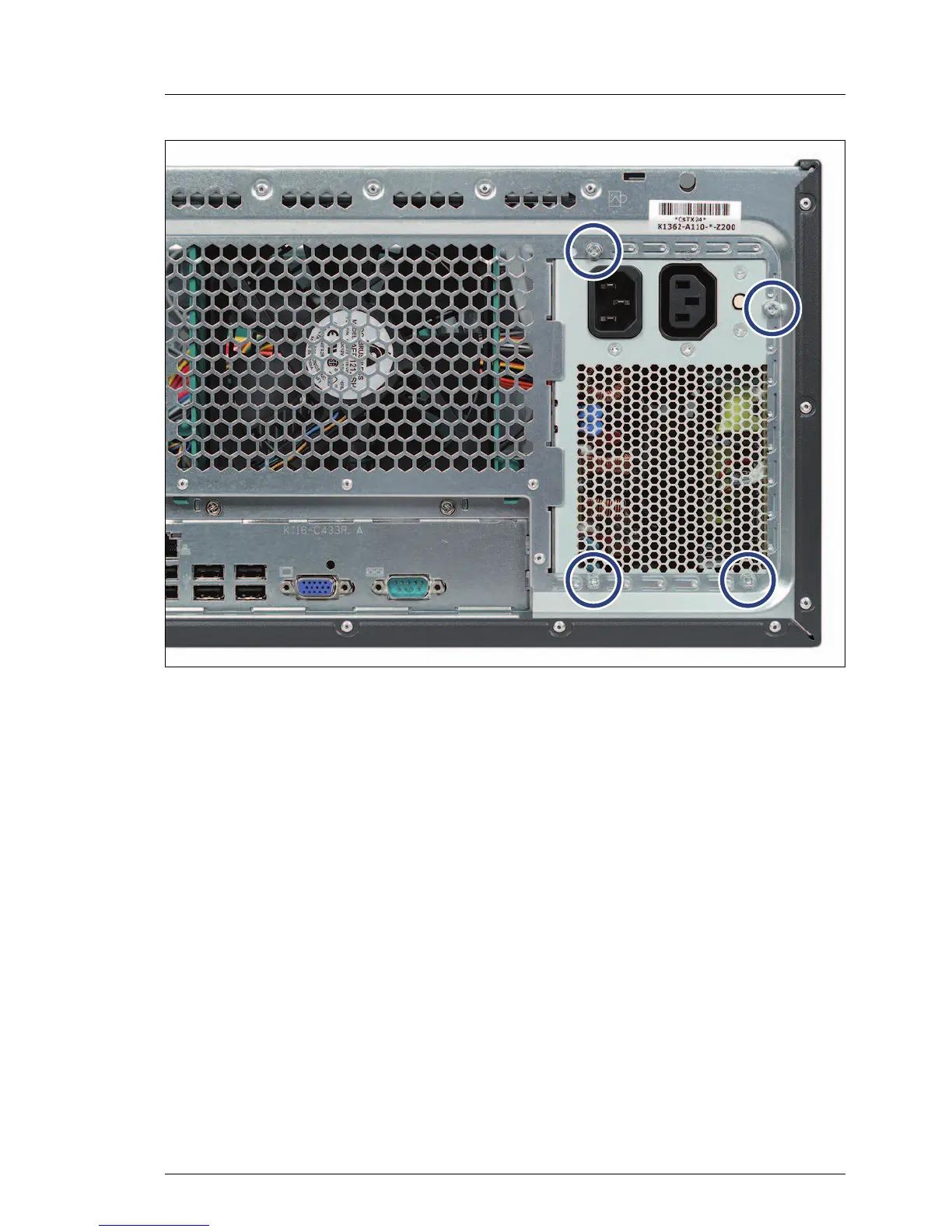

Figure 42: Detaching the PSU

Ê Remove four screws from the power supply unit (see circles).
