TX100 S2 Service Supplement 63
Replacement routines

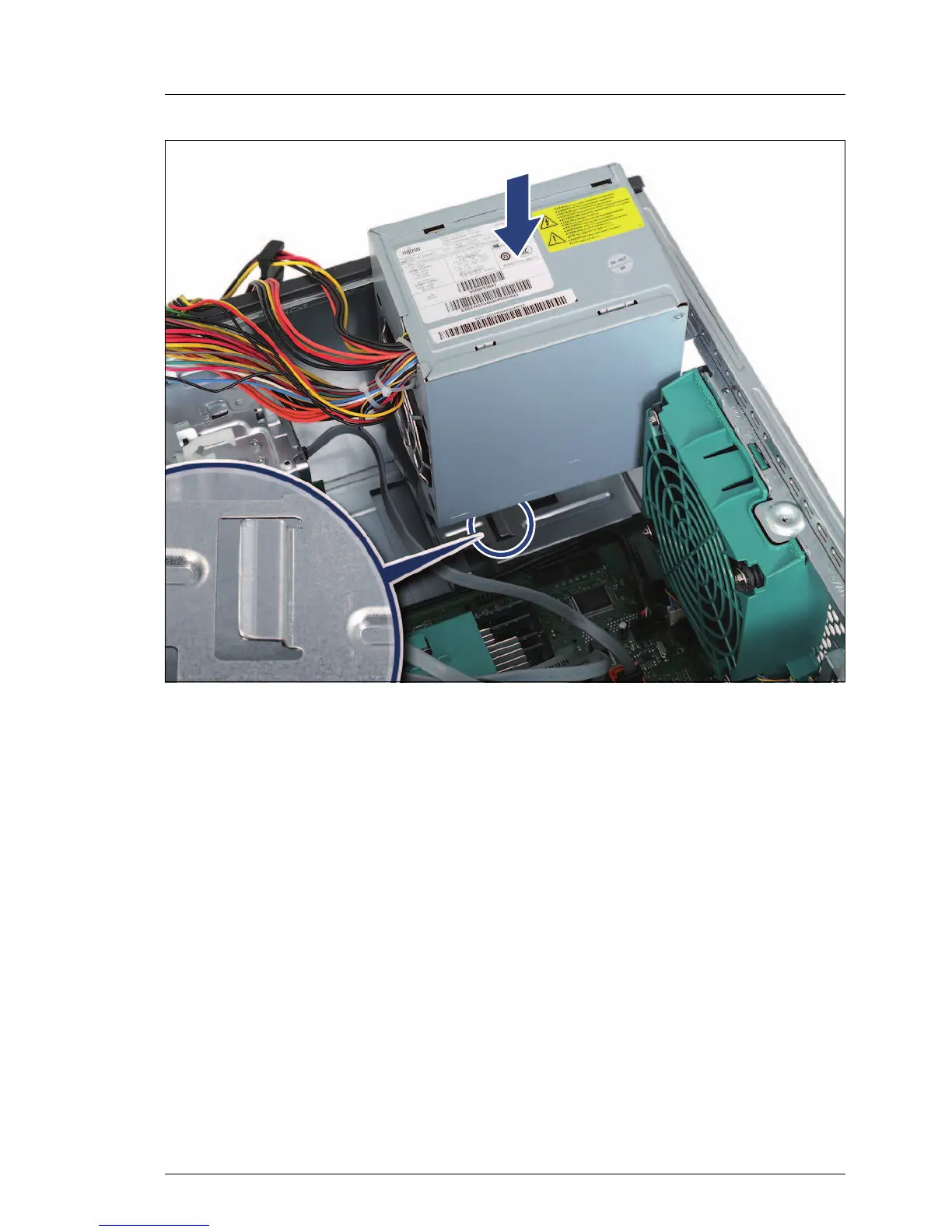

Figure 44: Mounting the PSU (A)
Ê Insert the new power supply unit into the chassis leaving a gap of about 3 cm
to the rear chassis wall.
Ê Ensure that the mounting bracket on the chassis (see circle) engages with
the notch on the lower surface of the power supply unit.
