82 Service Supplement TX100 S2
Replacement routines

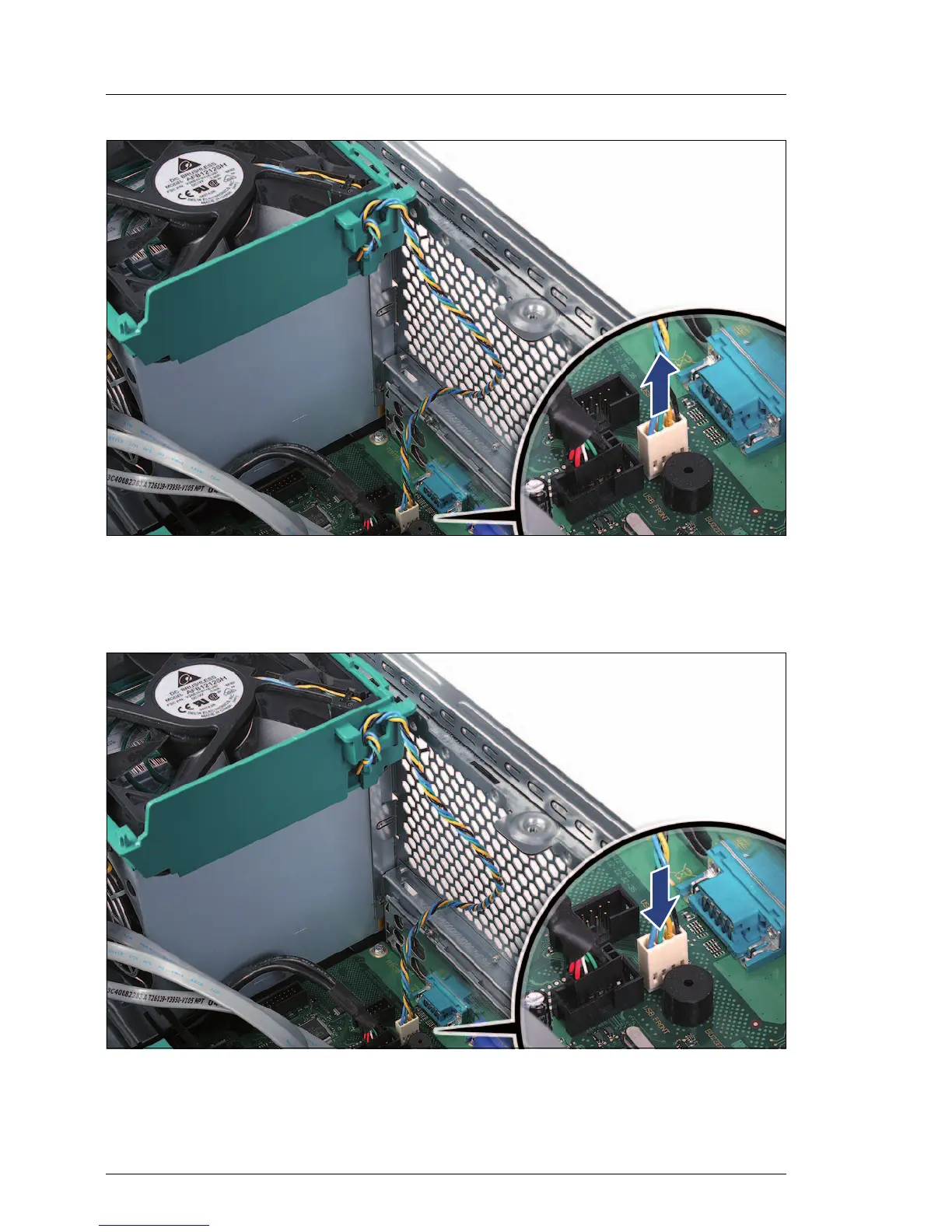

Figure 66: Disconnecting the rear fan cable
Ê Disconnect the FAN2 SYS connector of the defective fan module from the
system board.
Figure 67: Connecting the rear fan cable
Ê Reconnect the FAN2 SYS connector of the new fan module to the system
board
