TX100 S2 Service Supplement 87
Replacement routines

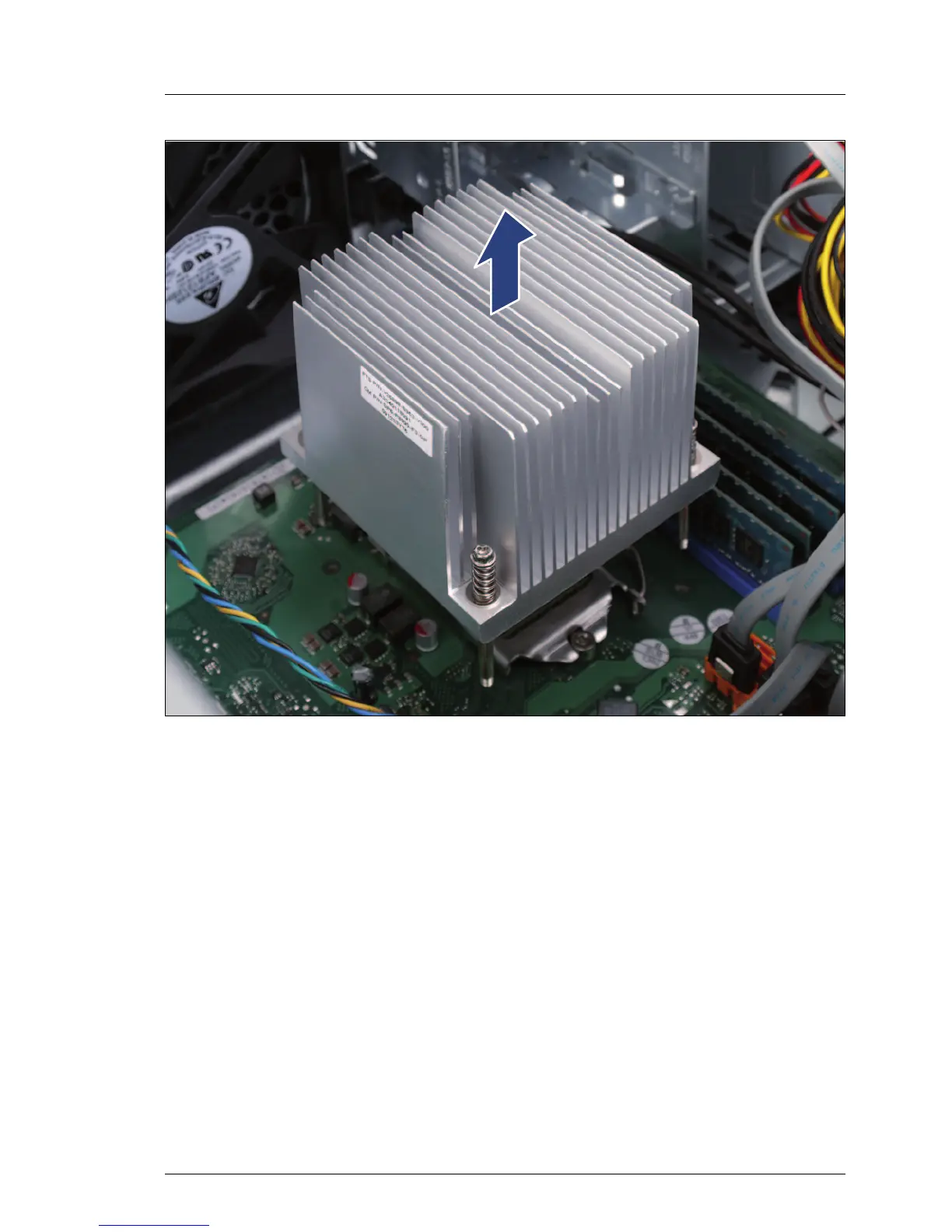

Figure 72: Removing the processor heat sink (B)
Ê Lift the heat sink out of the chassis.
I Due to the adhesive quality of the thermal paste located between the
heat sink and processor, it may be necessary to turn the heat sink
back and forth to detach it from the processor.
Ê Thoroughly clean residual thermal paste from the surface of the heat sink
using a lint-free cloth.
