40 Operating Manual TX100 S3 Core Edition
Hardware installation
5.3 Connecting devices to the server
The connectors for external devices are on the front and rear of the server. The
additional connectors available on your server depend on the expansion cards
installed. For further information refer to the “PRIMERGY
TX100 S3 Core Edition Server" Upgrade and Maintenance Manual. The
standard connectors are indicated by symbols and color coding:

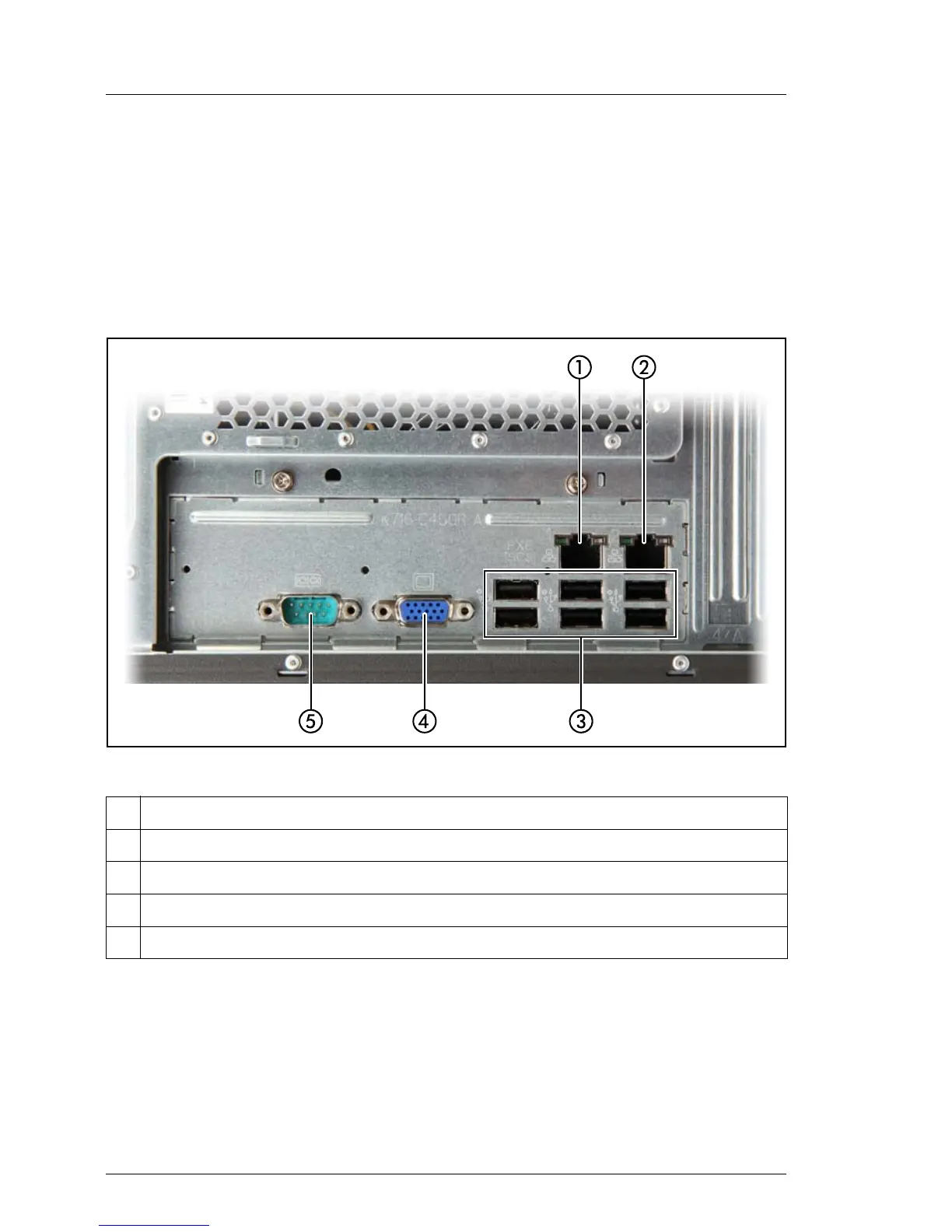

Figure 2: Connector panel on the rear side
I Some of the devices that can be connected may require special drivers
(see the documentation for the connected device).
Ê Connect the data cables to the server and peripherals.
Two additional USB connectors are located on the front of the server (see figure
5 on page 44).
1 Standard LAN1 connector
2 Standard LAN2 connector
3 USB connectors (x 6)
4 Video connector (blue) (not used)
5 Serial connector COM1 (turquoise)
