Fujitsu PRIMERGY TX100 S3 Core Edition - 6 Starting Up and Operation; Opening the Server Chassis

TX100 S3 Core Edition Operating Manual 43
6 Starting up and operation
V CAUTION!
Follow the safety instructions in chapter "Important information" on
page 25.
6.1 Opening the server

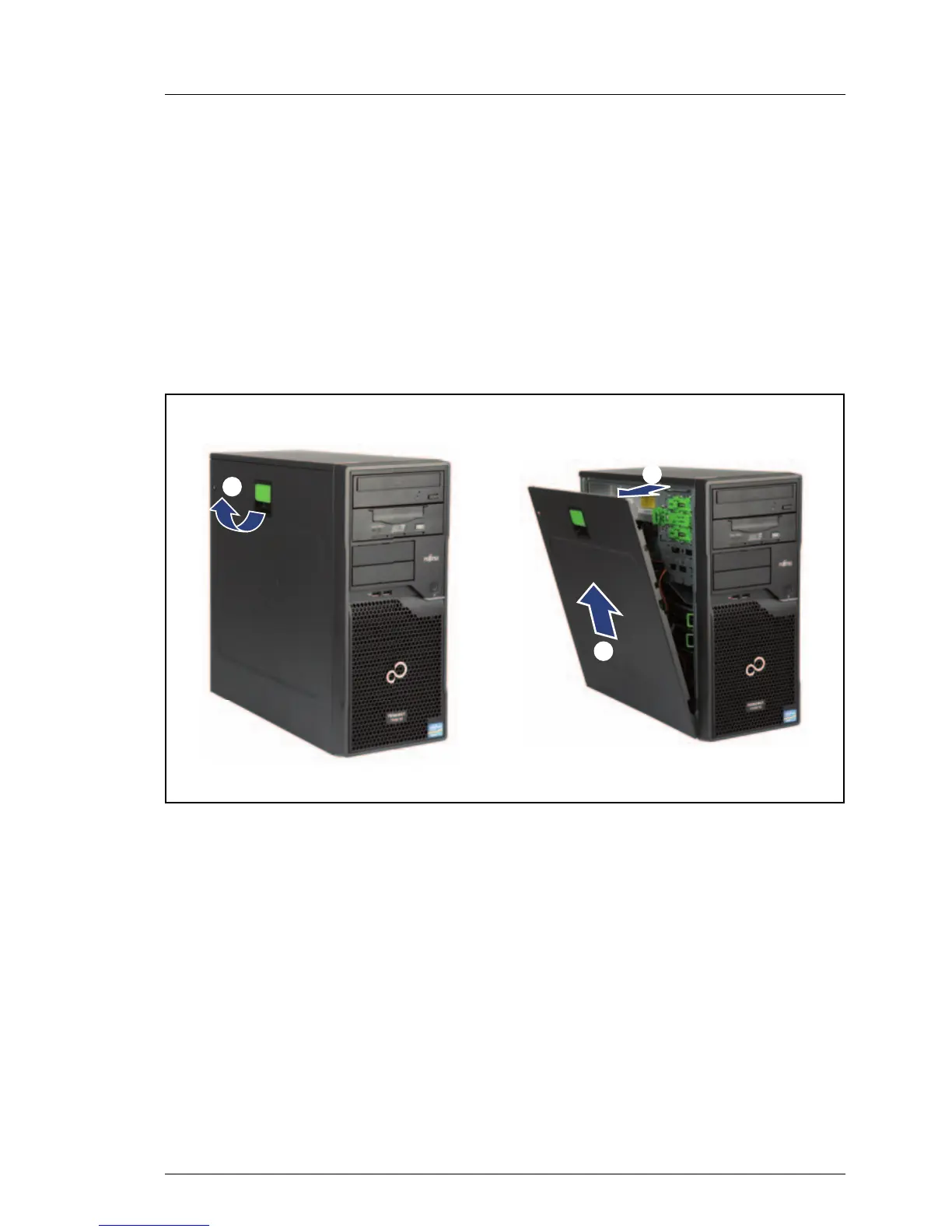

Figure 4: Removing the cover
Ê Pull up on the locking lever (1).
Ê Fold open the side cover (2).
Ê Remove the side cover (3).
/
