Fujitsu PRIMERGY TX100 S3 Core Edition - 5.4 Connecting the Server to Mains; Power Connection and Cord Securing

TX100 S3 Core Edition Operating Manual 41
Hardware installation
5.4 Connecting the server to the mains
The server is equipped with an integrated power supply unit.
V CAUTION!
The server is automatically set to a mains voltage in the range
100 V - 240 V. You may only operate the server if its rated voltage range
corresponds to the local mains voltage.
Ê Connect the power cord to the server power supply unit.
Ê Connect the mains plug to a grounded mains outlet in the in-house power
supply network.
Securing the power cord

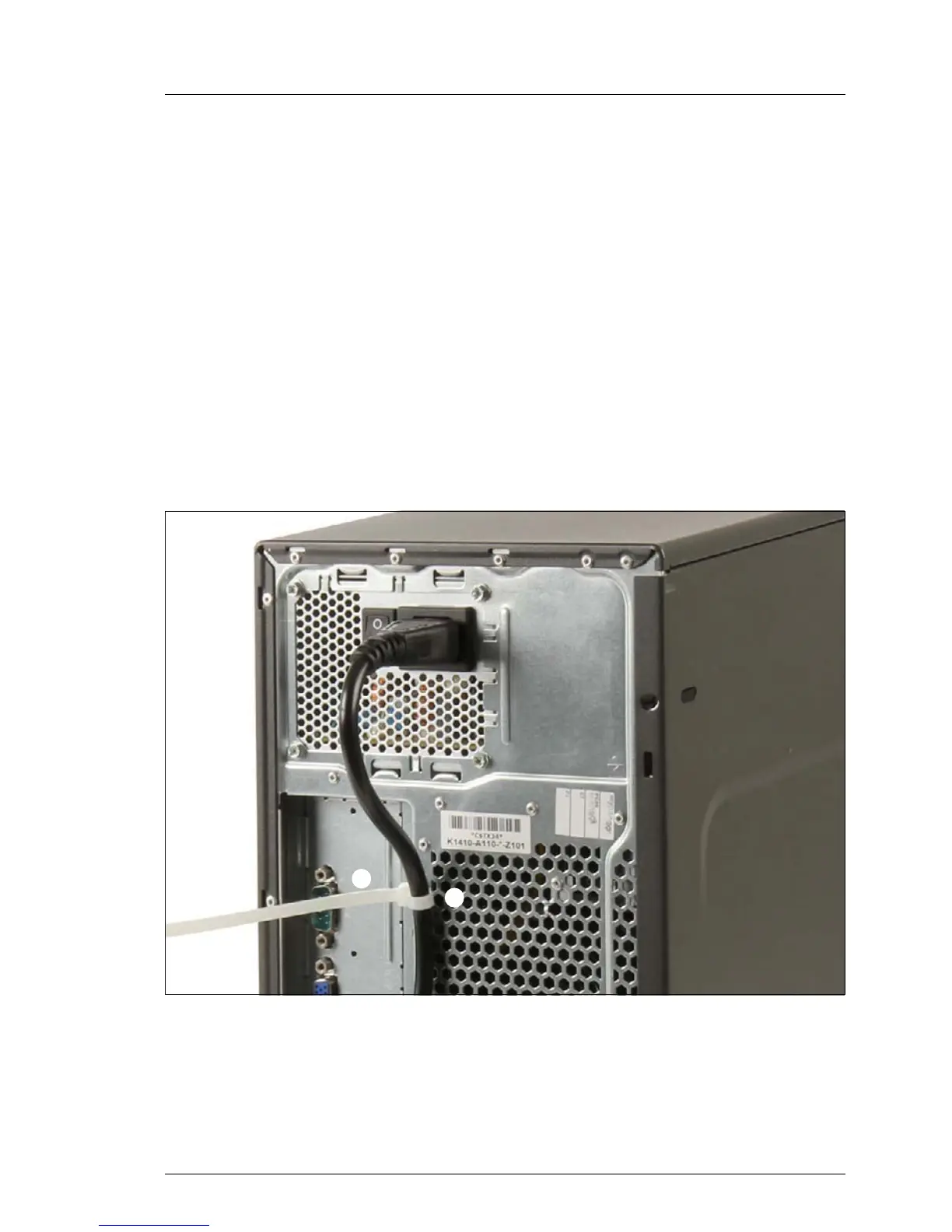

Figure 3: Securing the power cord
Ê Loop the cable past the cable tie mounting bracket as shown.
Ê Close the cable tie around the power cord (1) and pull tight (2) to secure the
power cord.
/
