74 Operating Manual TX100 S3 Core Edition
Starting up and operation
For additional information on VNC File Transfer, please refer to
section "Transfering the PrimeCollect file to your client computer" on
page 67.
I At least two hard disk drives must be installed when resetting your
server. In order to prevent additional hard disk drives from being
overwritten, proceed as described in section "Operating system
recovery with 4-HDD configurations" on page 87.

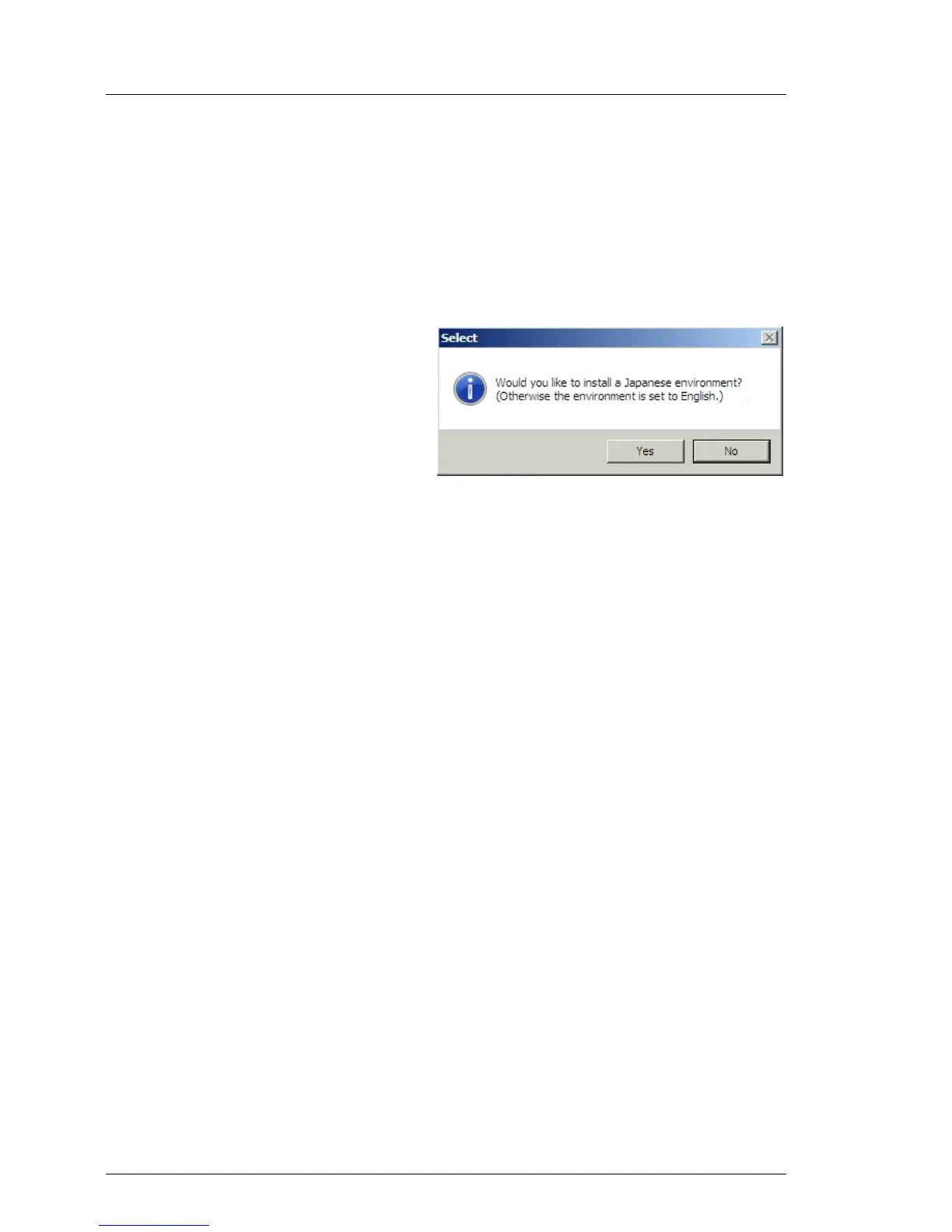

Ê Click Yes to choose a Japanese
user interface and software
environment after the installation
process is complete.
Click No for the default English
user interface environment.
Ê In order to initiate the rebuild and installation process, confirm the warning
message.
V Once the installation has been started, the device must not be
switched off unless the DVD tray opens, indicating that the installation
process is complete.
I The RAID array rebuild and recovery installation will be performed
completely unattended. The server will reboot several times during
the process. The VNC connection will be closed upon the first reboot
and can be re-established about three minutes later for a limited time
to monitor the installation progress.
Ê Wait until the DVD tray opens, indicating that the installation process is
complete.
I The system can now be used, however, data redundancy will not be
available until the RAID array rebuild is complete. Depending on the
hard disk drive capacity the overall process can take up to several
hours.
Ê Remove the Maintenance & Recovery DVD and close the DVD tray.
Ê Perform steps 3 through 5 in section "Initial operation" on page 48 in order
to finalize the operating system installation and starting up your server.
