TX150 S6 Operating Manual 101
CSS components Hot-plug components
Unlocking the 2.5-inch HDD module

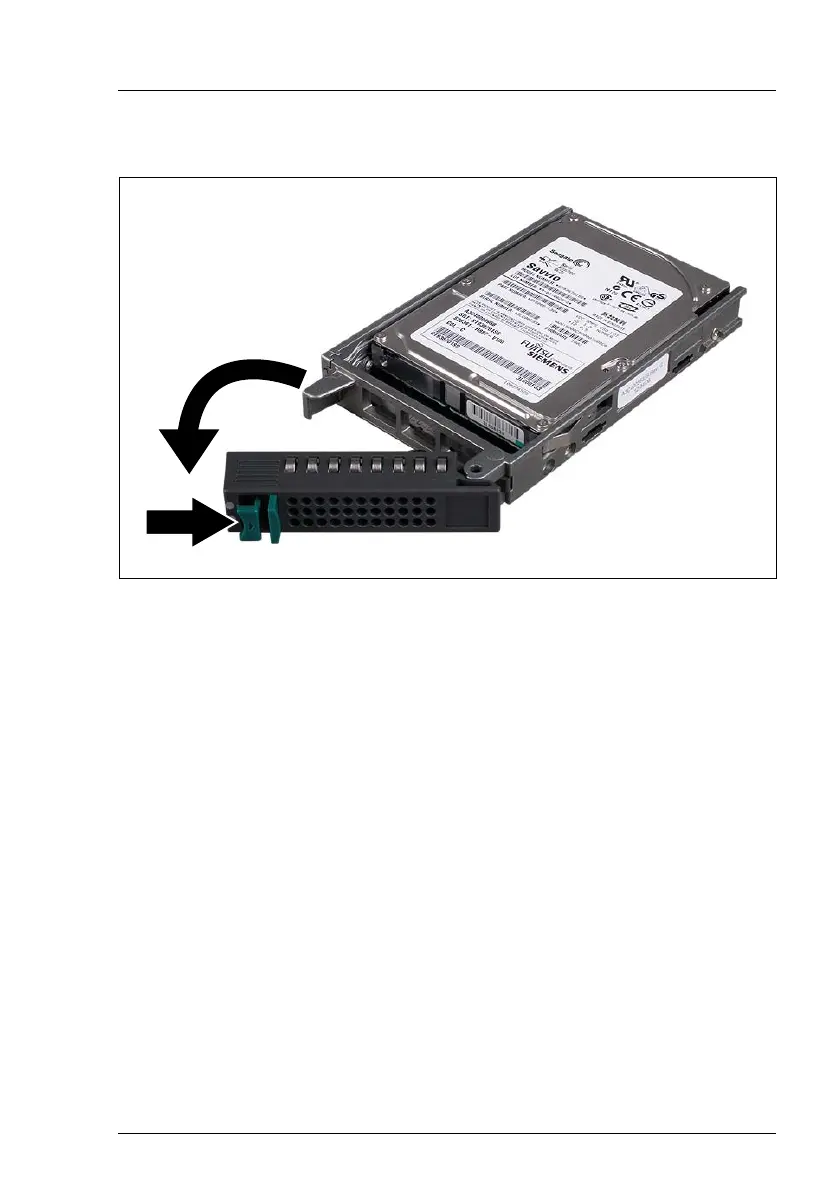

Figure 36: Unlocking the 2.5-inch HDD module
Ê Open the locking mechanism by pressing the locking button (1).
Ê Push the handle of the HDD module fully in the direction of the arrow (2).
The HDD module is now unlocked.
1
2
