38 Operating Manual TX150 S6
Setting up the floorstand model Hardware installation
4.2.1 Mounting the anti-tilt bracket
I For safety reasons (risk of tipping), the anti-tilt bracket must be fitted on
the rear of the server on floorstand models with hot-plug power supply
units.

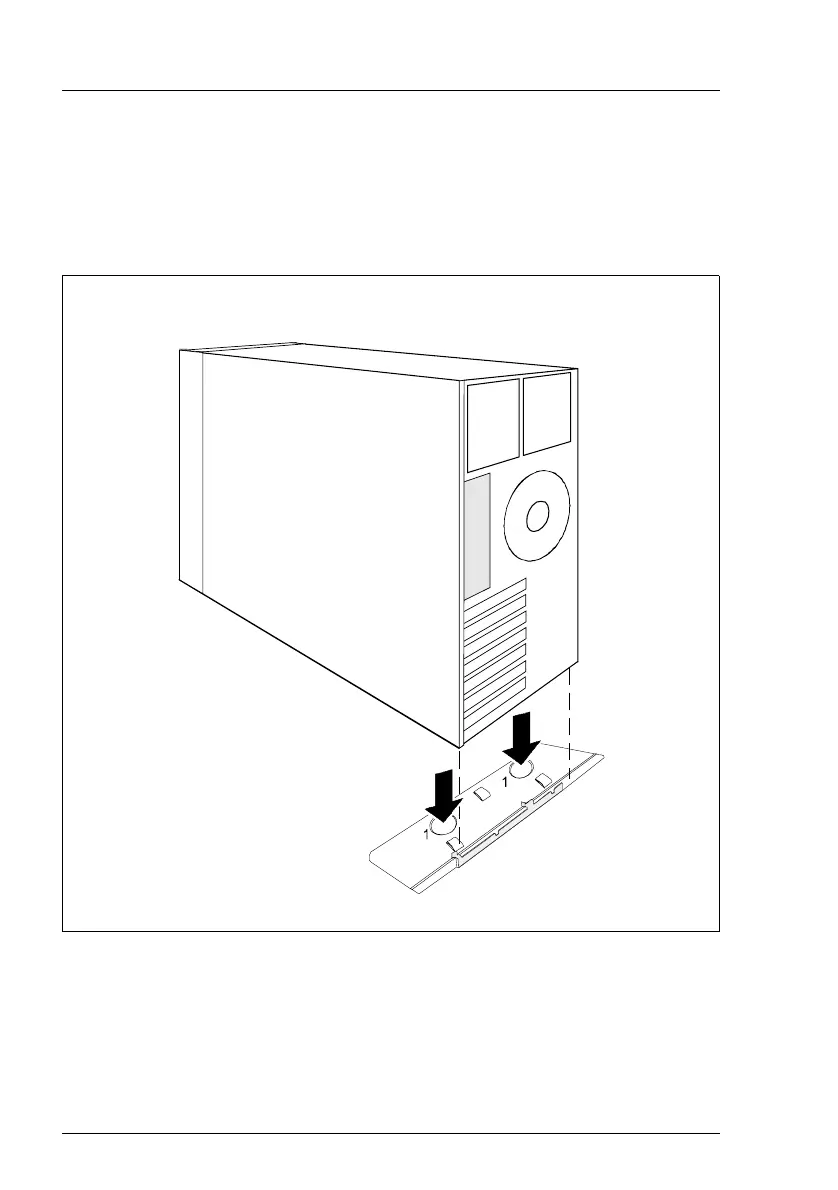

Figure 2: Mounting the anti-tilt bracket
Ê Position the server on the anti-tilt bracket in the way that the rubber feet of
the server fit into the openings of the bracket (1).
