72 Operating Manual TX150 S6
Controls and indicators Starting up and operation
5.2.2 Rear of server
Indicators on the connection panel (CSS/Global Error/ID indicator)

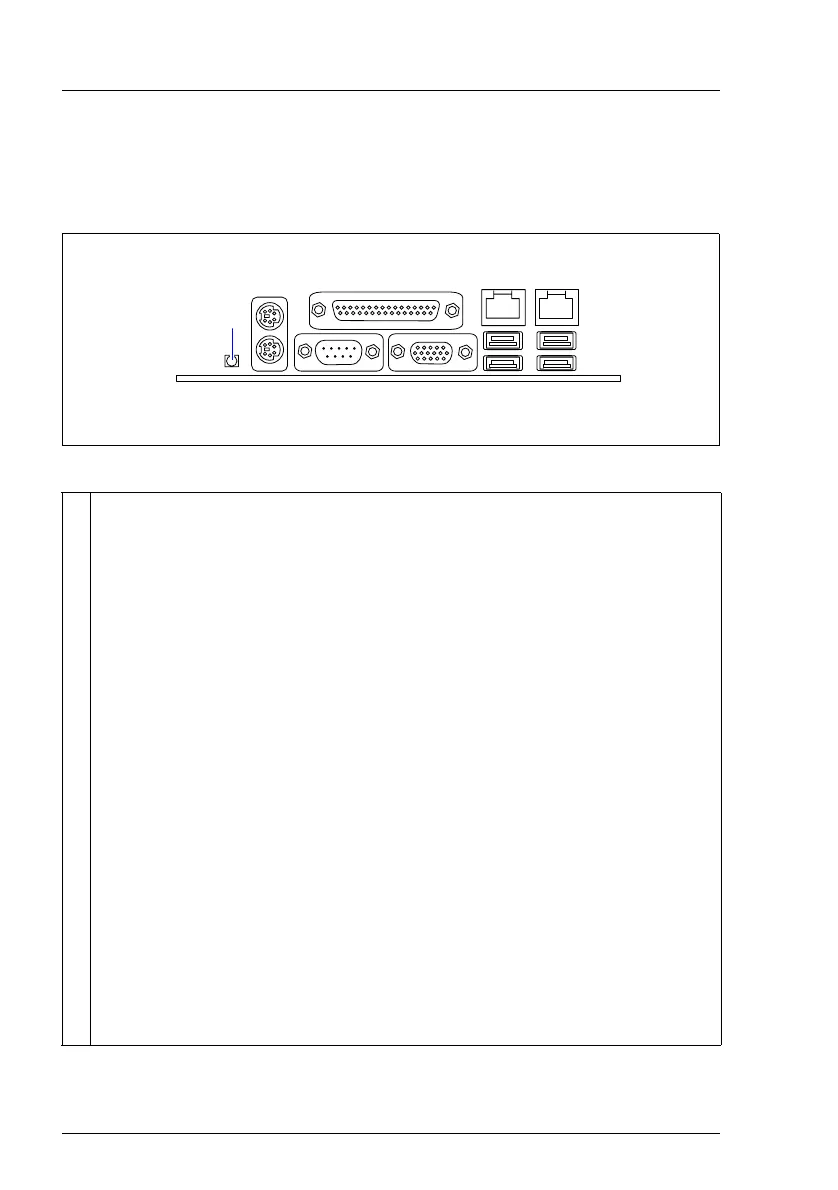

Figure 26: CSS/Global Error/ID indicator
1 CSS/Global Error/ID indicator (orange/red/blue)
Generally, the three possible states of this indicator have the following
meanings:
– Does not light up when the system is OK.
– If the event is still acute after a power failure, the indicator is activated
after the restart.
– Lights up when a prefailure event has been detected or the ID button
has been pressed. The indicator also lights up in standby mode.
– Flashes when an error was detected. The indicator also flashes in
standby mode.
For more details on the indicated errors, you can consult the System Event
Log (SEL), the ServerView Local Service Panel, ServerView S2 or the
ServerView Remote Management via iRMC's own Web server.
Depending on the color, the states „light up“ and „flash“ have the following
meanings:
– CSS (orange)
Lights up yellow if a prefailure event was detected for a CSS
component.
Flashes orange if an error was detected that you can fix yourself with
the CSS concept (see “Customer Self Service (CSS)” on page 10).
