60 Operating Manual TX150 S6
Connecting devices to the server Hardware installation
4.4 Connecting devices to the server
The ports for external devices are on the front and rear of the server. The
additional ports available on your server depend on the expansion cards
installed. For further information refer to the “Options Guide”.
The standard ports are indicated by symbols and color coding:

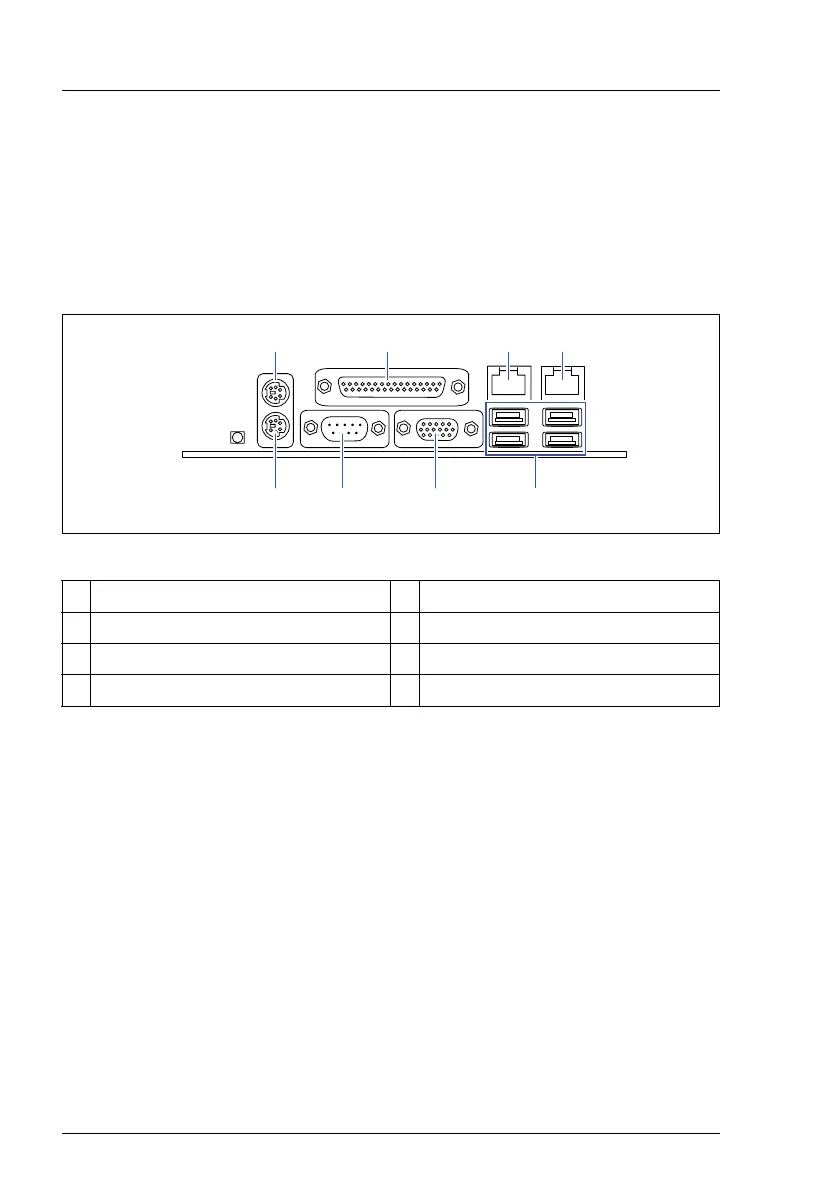

Figure 19: Standard ports
I Some of the devices that can be connected may require special drivers
(see the documentation for the connected device).
Ê Connect the data cables to the server and peripherals.
An additional USB port is located on the front of the server (see figure 24 on
page 67).
1 PS/2 mouse port 5 4 x USB ports
2 Parallel port (optional) 6 monitor port
3 service LAN port 7 Serial port COM1 *
4 Standard LAN port 8 PS/2 keyboard port
* The serial interface COM1 can be used as the standard interface or for
communication with iRMC.
8
1
3 4
2
76 5
