TX150 S6 Operating Manual 67
Starting up and operation Controls and indicators
5.2 Controls and indicators
5.2.1 Front of server

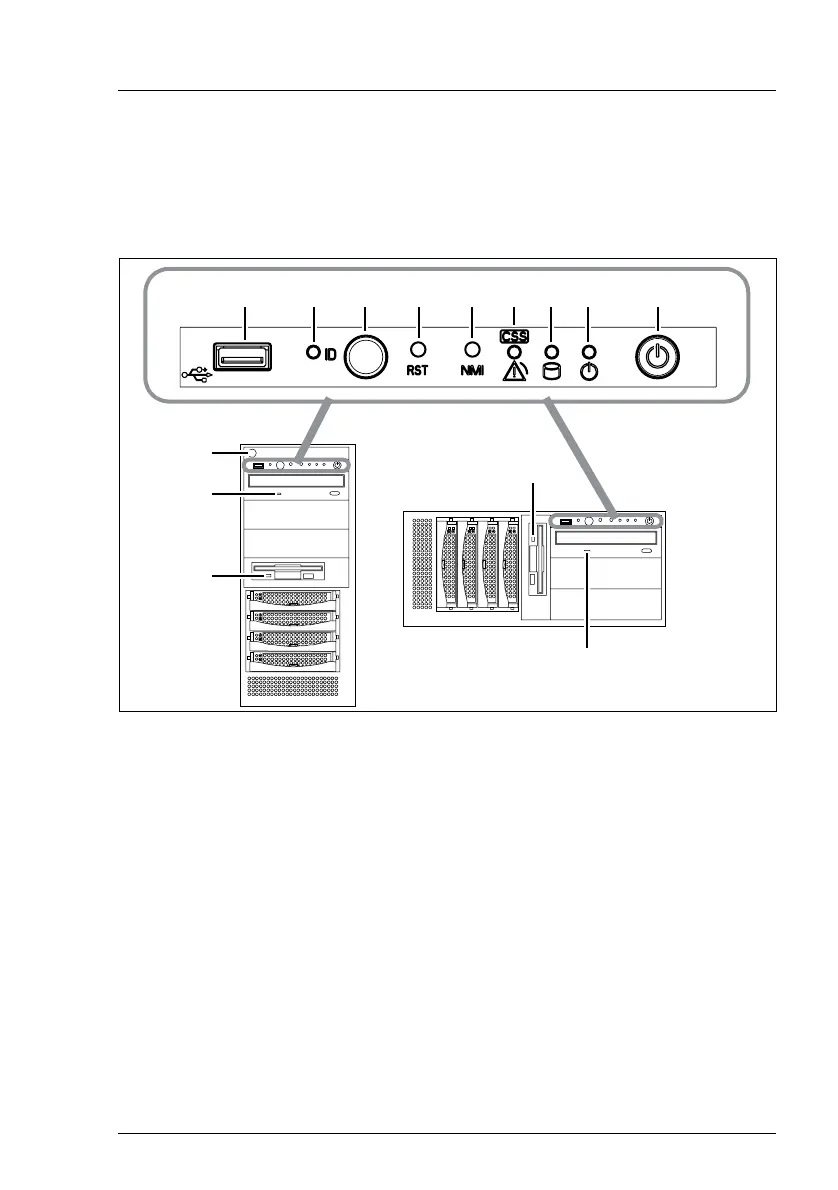

Figure 24: Front of server
1 On/Off button 7 Identification button
(= ID button)
2 power-on indicator 8 Identification indicator
(ID indicator)
3 Hard disk drive activity indicator 9 USB port
4 CSS/Global Error indicator 10 Floppy disk drive indicator
5 NMI button 11 CD-/DVD drive indicator
6 reset button 12 Key lock (floorstand model only)
12345689 7
12
11
10
10
11
