66 Operating Manual TX150 S6
Access to drives (floorstand model) Starting up and operation
Enabling access to the HDD modules

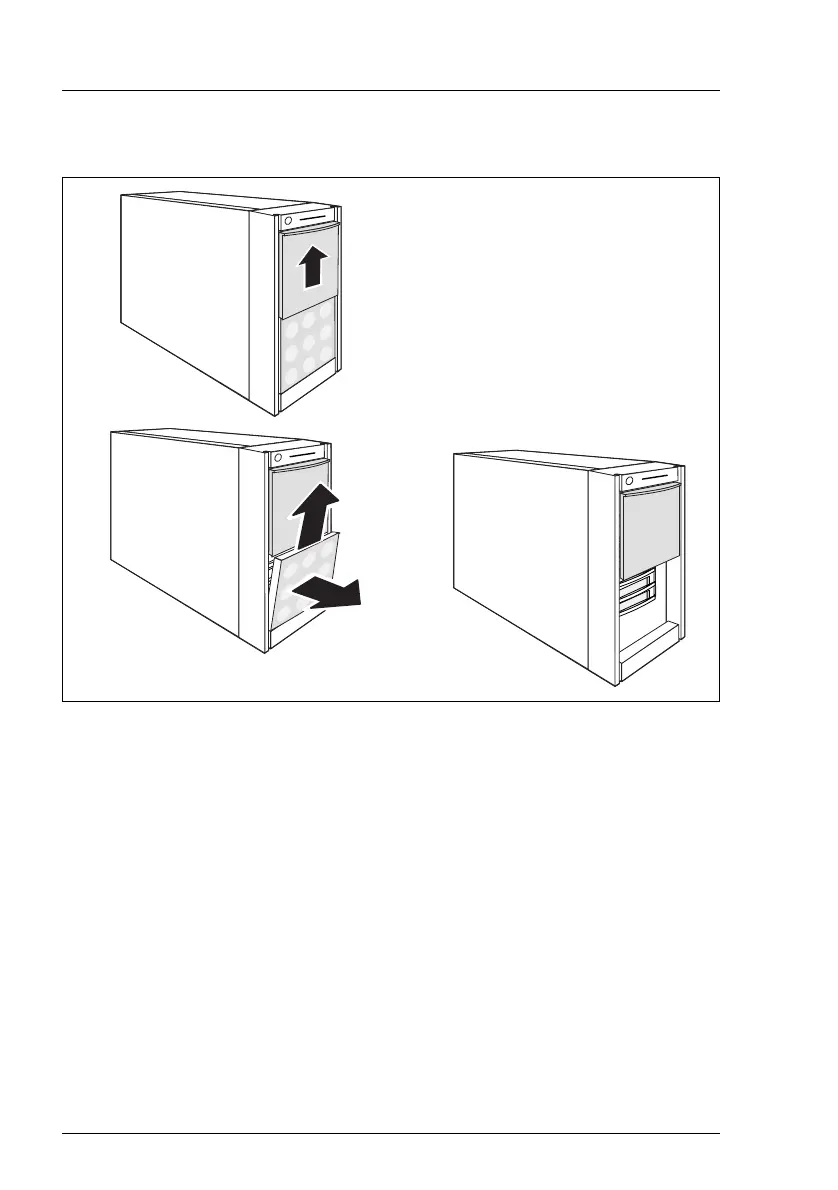

Figure 23: Access to the HDD modules
Ê Push the drive cover up as far as possible (1).
Ê Remove the hard disk drive cover (2 + 3).
To replace the hard disk drive cover, follow these instructions in reverse.
I The server can be locked to prevent access to the HDD modules. The
drive cover cannot then be pushed upwards and the hard disk drive cover
cannot be removed. The key can be found on the rear of the server.
!
