110 Operating Manual TX150 S6
Non-hot-plug components CSS components
8.2.4 Replacing the system fan
V CAUTION!
Since the system fans are not redundant, defective system fans have to
be replaced immediately.

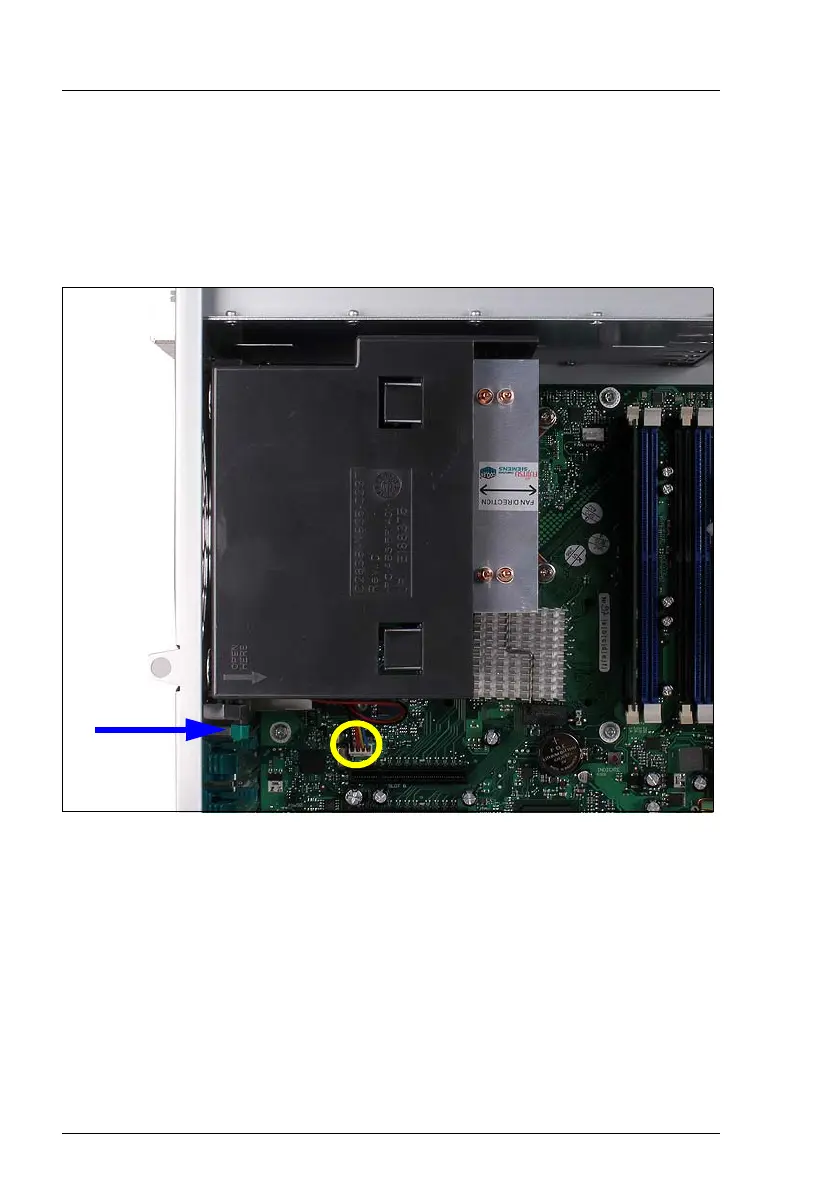

Figure 45: Removing the system fan
Ê Disconnect the system fan cable from the connector FAN1 SYS on the
system board (see circle).
Ê Press on the green lock bar of the system fan in direction of the arrow and
remove the system fan.
Ê Insert the new system fan. The proper system fan position can best be
judged from outside at the back of the server. When doing so, make sure the
system fan lock bar engages properly.
