TX150 S6 Operating Manual 61
Hardware installation Connecting the server to the mains
4.5 Connecting the server to the mains
The server is either equipped with an integrated power supply unit or with one
or two hot-plug power supply units.
If it has a single hot-plug power supply unit, a second power supply unit can be
added during operation to achieve a redundant power supply. If one power
supply unit is defective, the other then guarantees unimpaired operation. Each
hot-plug power supply unit can be replaced during operation (see “Hot-plug
power supply units” on page 92).
V CAUTION!
The server is automatically set to a mains voltage in the range 100 V -
240 V. You may only operate the server if its rated voltage range corre-
sponds to the local mains voltage.
I Alternatively, you can secure the power cables in a cable clamp (b) to
ensure that the insulated connectors cannot be disconnected from the
server accidentally. The cable clamp is included in the accessories pack
that is delivered together with your server and you can stick it to the rear
of the server. Please use position (a) in the following figure for this:

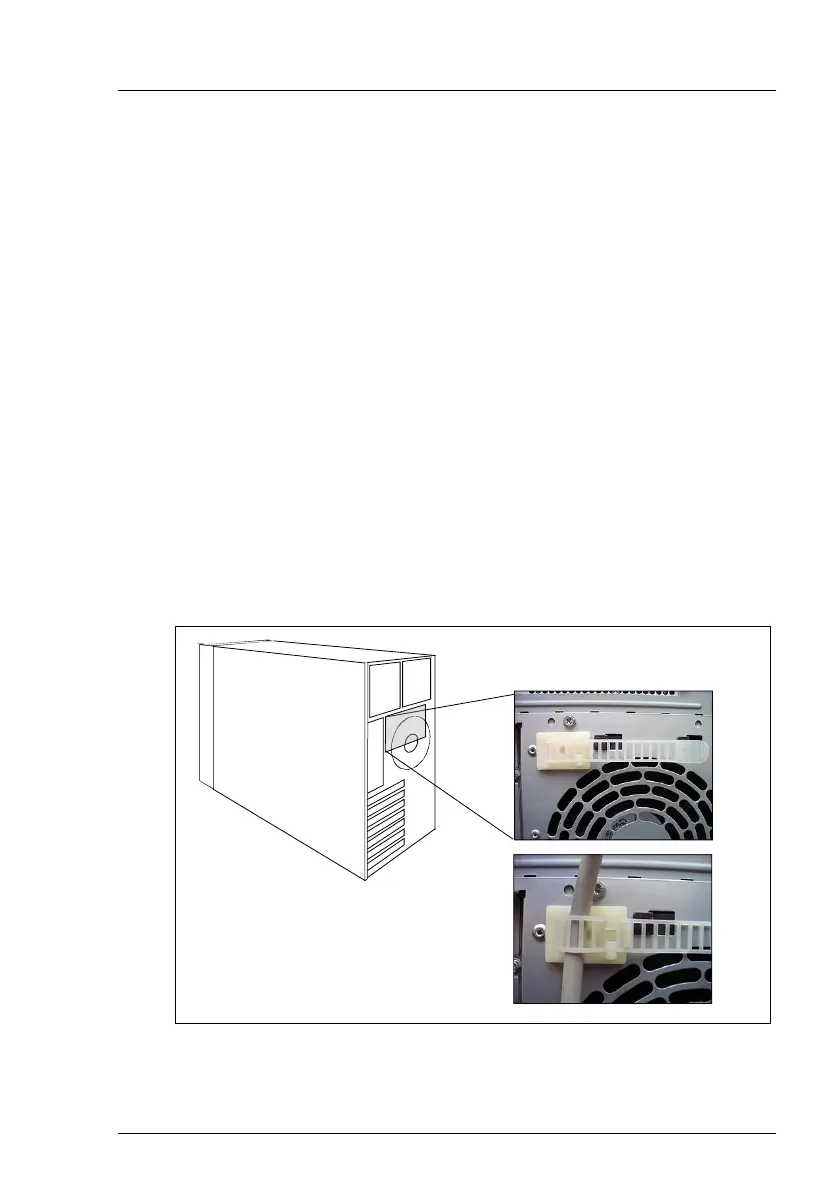

Figure 20: Attaching the cable clamp
a
b
