62 Operating Manual TX150 S6
Connecting the server to the mains Hardware installation

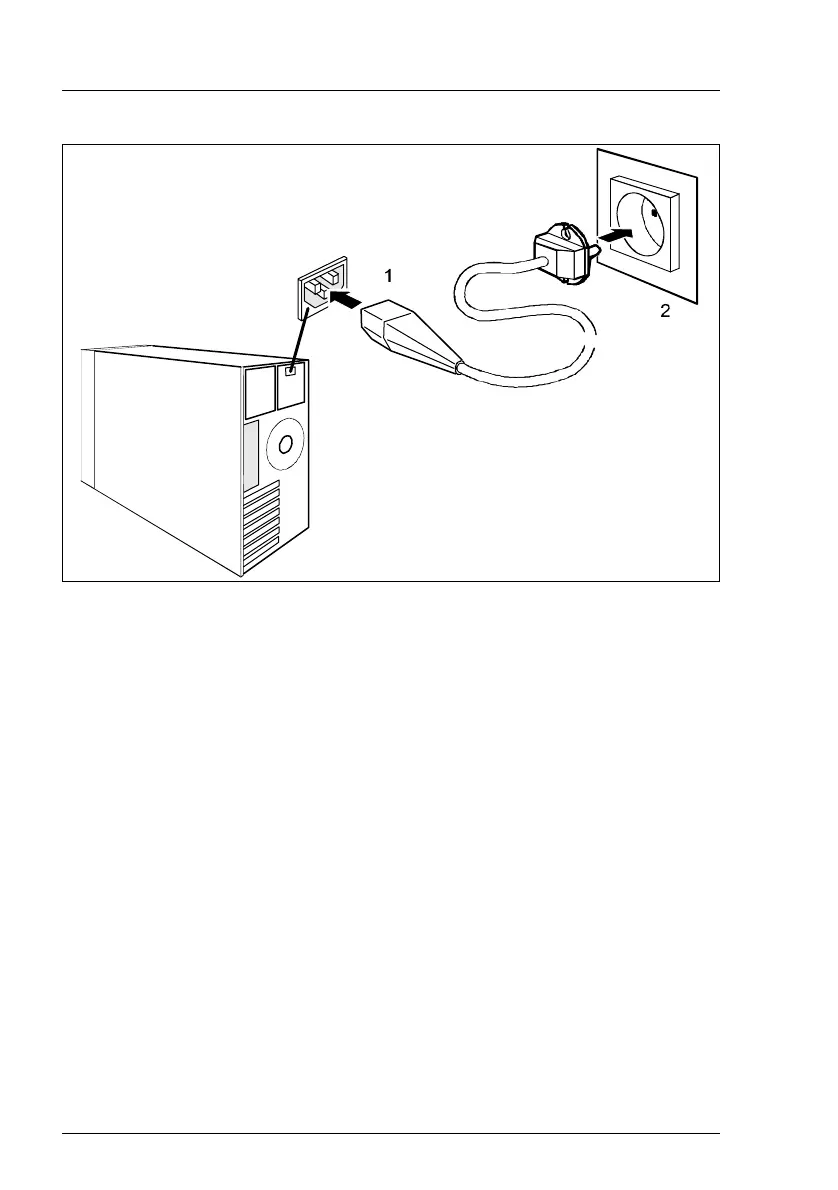

Figure 21: Connecting the server to the mains (floorstand model with hot-plug power supply
units)
Ê Connect the power cord to the server power supply (1).
Ê Connect the power plug to a grounded shockproof socket (2) on the internal
supply network or to the multiple socket outlet in the rack (see Technical
Manual for rack).
I A phase redundancy in the power supply of the server can be set up if
two hot-plug power supply units are installed.
In this case, each of the power supply units is either connected to two
different phases or to two separate circuits of the internal power supply
network.
