108 Operating Manual TX150 S6
Non-hot-plug components CSS components

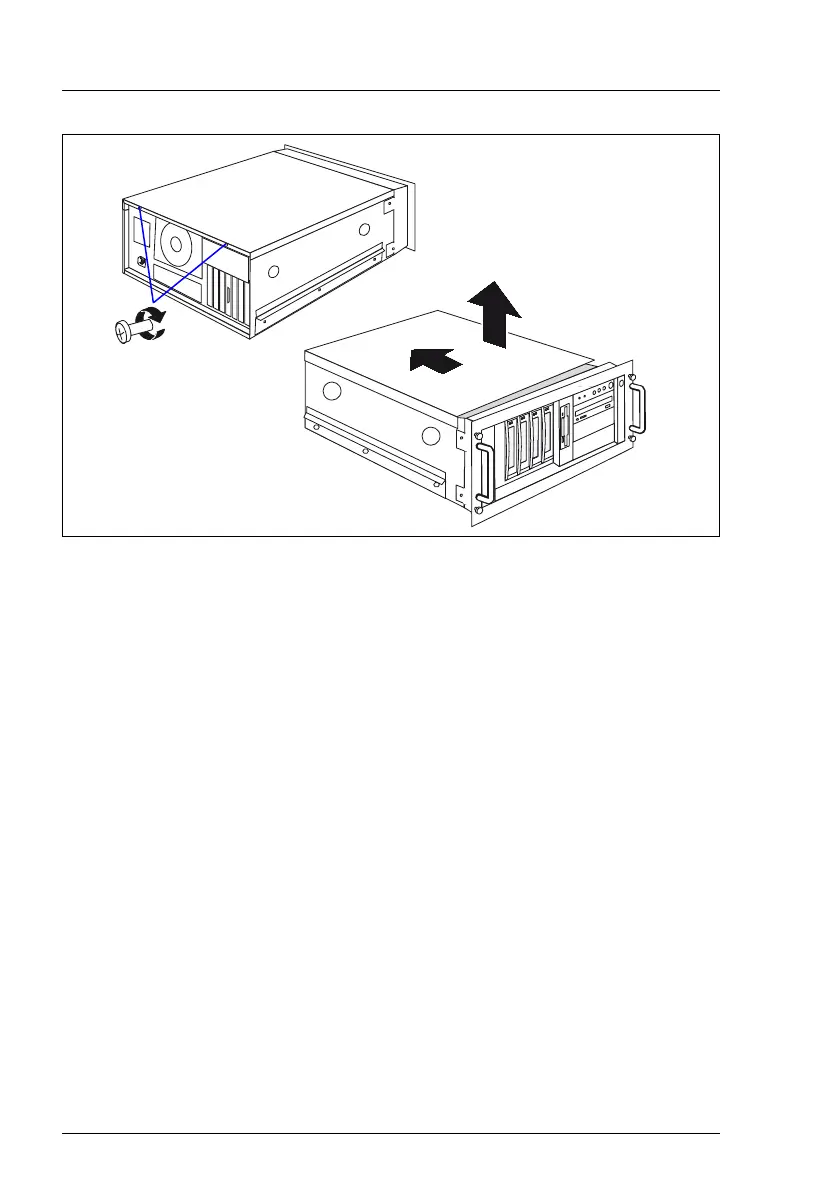

Figure 42: Removing the top cover
Ê Unlock the top cover by removing the two screws on the server rear (1).
Ê Push the top cover to the rear approxiate 2 cm (2).
Ê Lift off the top cover upwards (3).
8.2.2 Identifying a defective CSS component
Ê Press the Indicate CSS button on the system board (see the technical
manual for the system board D2559 on the ServerBooks DVD).
The PRIMERGY Diagnostic LED of the defective CSS component lights up
orange and displays, which CSS component on the system board needs
replacing (memory module, system fan or expansion card).
2
3
2
1
