TX150 S6 Operating Manual 71
Starting up and operation Controls and indicators
Hard disk drive indicators

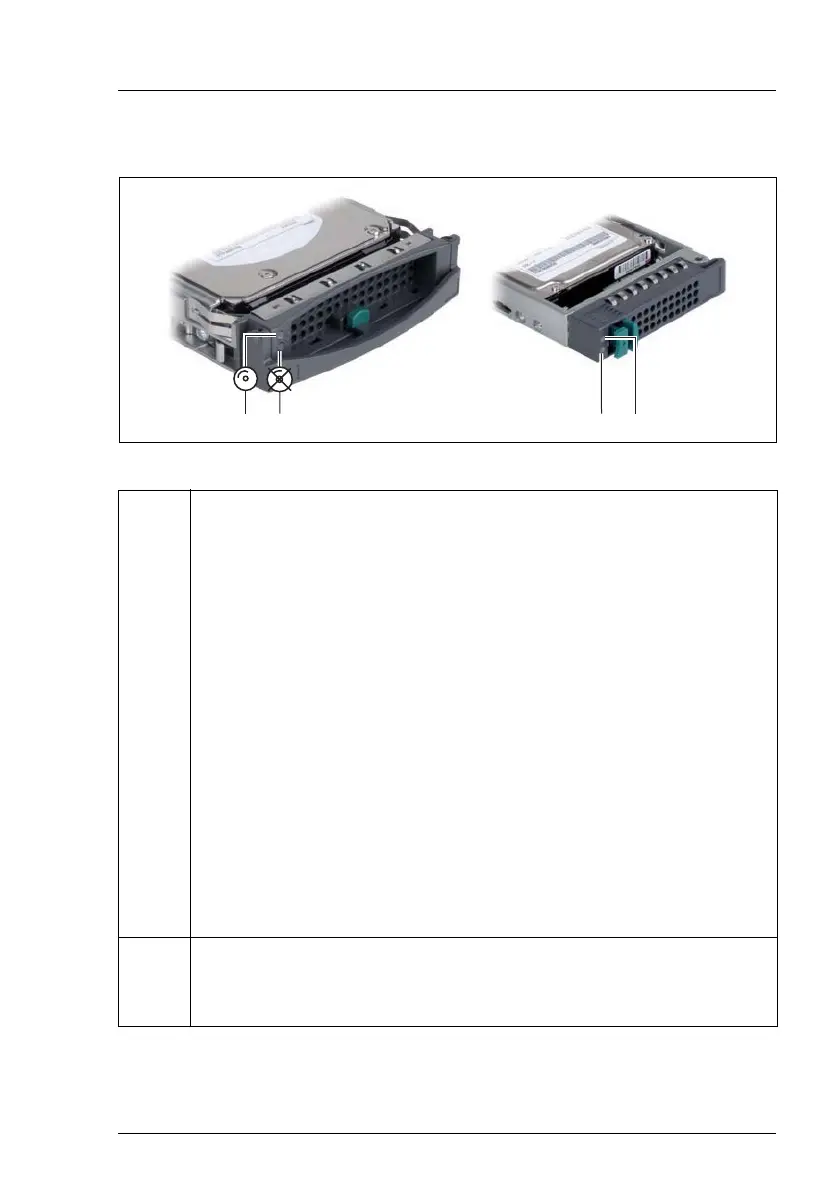

Figure 25: Indicators on the 3.5 inch and 2.5 inch HDD modules
LED
orange
HDD FAULT (in conjunction with a disk array controller)
● SAS server variant
– Does not light: no HDD error
– Lit: HDD Faulty or Rebuild Stopped (drive defective/needs
replacing, drive failed, drive deactivated by software or the
HDDmodule is not correctly inserted)
– Slow flashing: HDD Rebuild (the data is being restored after
changing a drive)
– Fast flashing: HDD Identify
● SATA server variant
– Does not light: no HDD error
– Lit: HDD Faulty or Rebuild Stopped (drive defective/needs
replacing, a rebuild process was stopped or the HDDmodule is
not correctly inserted)
– Slow flashing: HDD Rebuild (the data is being restored after
changing a drive)
– Fast flashing: HDD Identify
LED
green
HDD BUSY
– Lit: HDD in active phase (drive active, drive being accessed)
– Does not light: HDD inactive
