112 Operating Manual TX150 S6
Non-hot-plug components CSS components

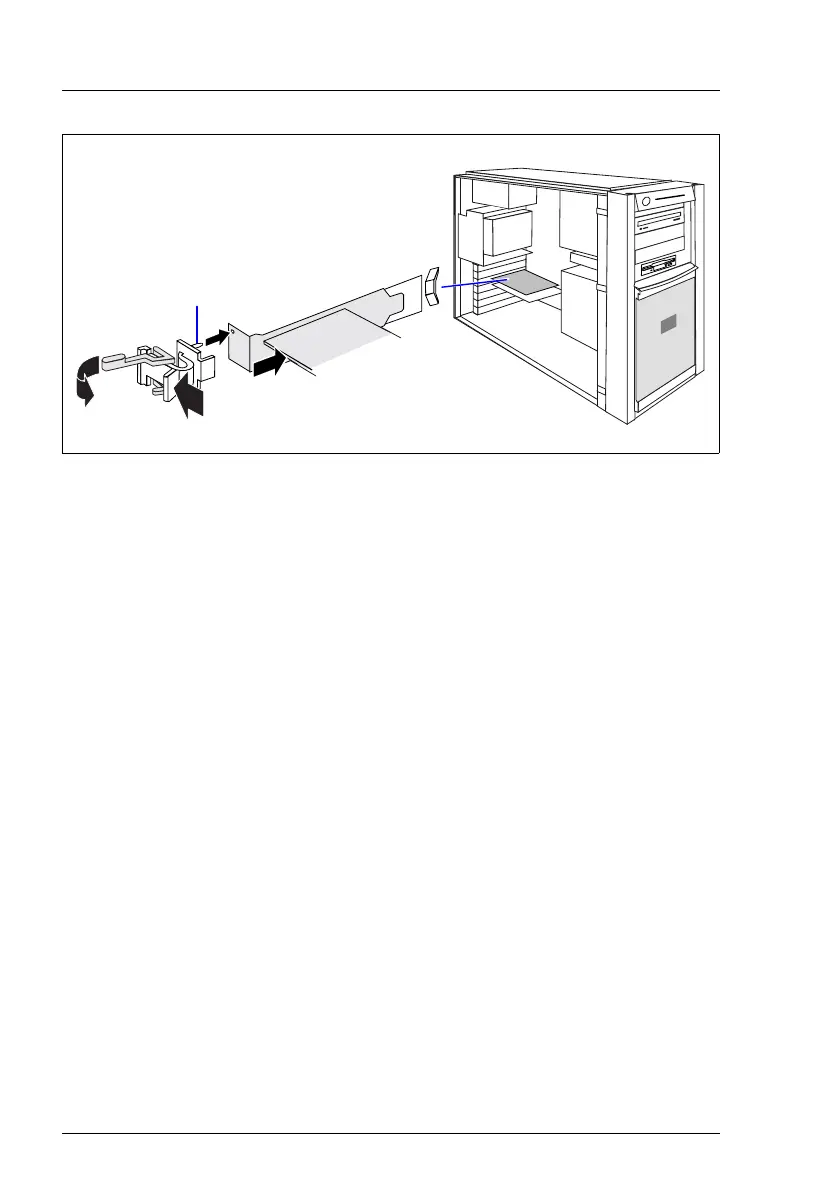

Figure 47: Installing a new expansion card
Ê Install the new expansion card in the PCI slot and press it carefully into the
associated plug-in location on the system board (1) until it engages properly.
Ê Place the clip on the slot cover in such a way that the pin (a) fits into the hole
of the slot cover (2), and press the clip in the direction of the arrow (3) until
it engages.
Ê Swing the lever (4) in its locking position.
Ê Reconnect all cables to the expansion card.
1
2
3
4
a
