46 Operating Manual TX150 S6
Mounting the rack model Hardware installation
To install the left-hand rail in the PRIMECENTER/DataCenter Rack, the support
bracket supplied must first be mounted flush on the rear left support upright.
I For better orientation the height units are marked on the support uprights
(PRIMECENTER Rack only).

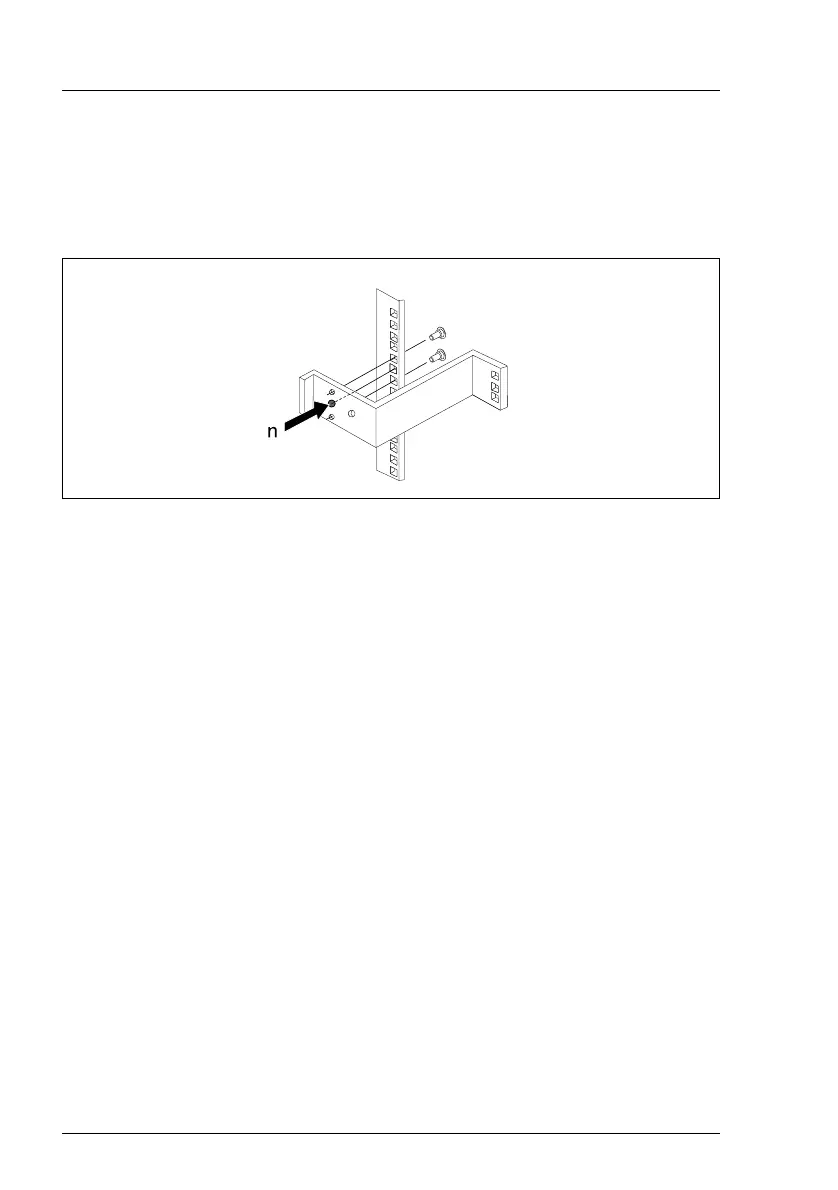

Figure 6: Fitting the support bracket
Ê Place the support bracket at the appropriate height on the left rear support
upright by inserting the positioning nub (n) in the corresponding hole of the
support upright.
Ê Secure the bracket with two screws inc. plug washers.
No nuts are required to secure the support systems as the fixing holes on the
rails are threaded.
