58 Operating Manual TX150 S6
Mounting the rack model Hardware installation

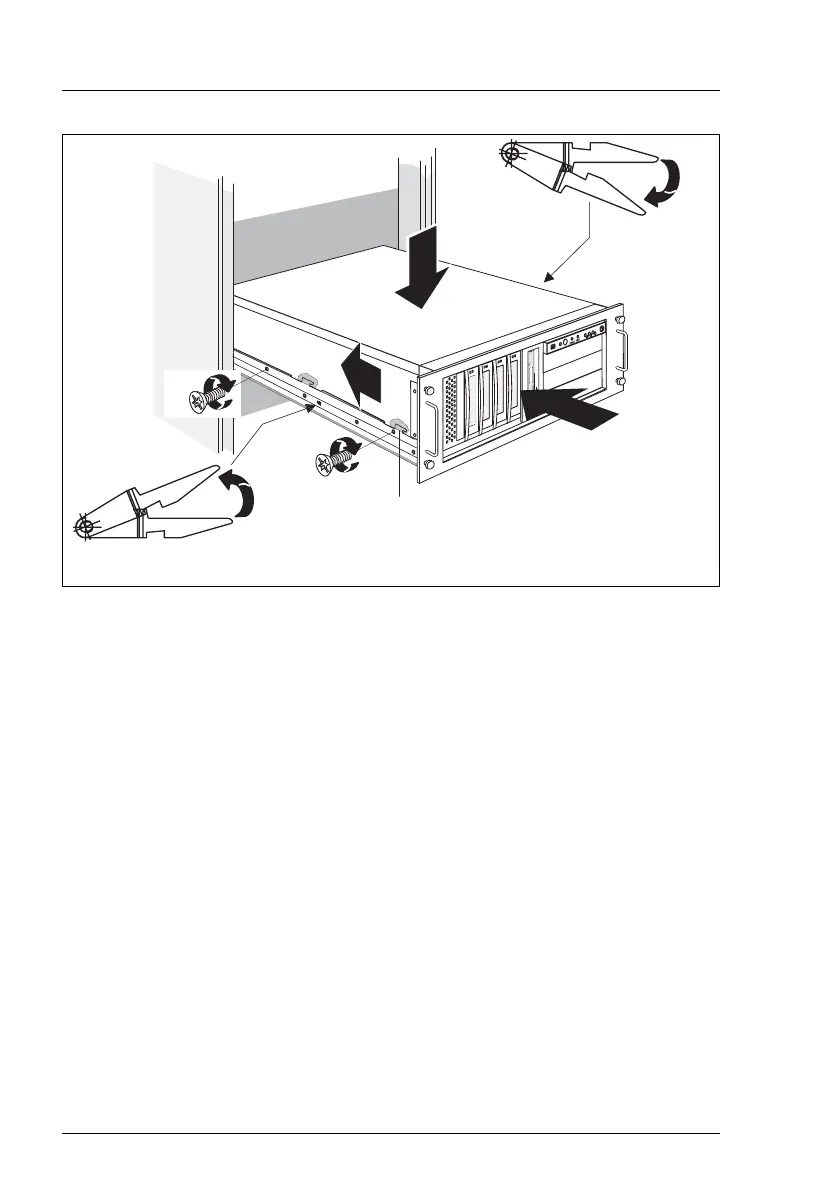

Figure 17: Inserting the server
Ê Lift the server onto the two system support rods (engaging hooks) (1).
V CAUTION!
Never lift or transport the server using the handles on the front panel.
Ê Slide the server slightly in the direction of the arrow (2) until the hooks (3)
engage. When doing this, ensure that the telescopic rails are kept in a locked
position.
Ê Secure the server to the telescopic rails with two M3x6 screws on each side
(4).
Ê Insert the cage nuts for securing the front panel into the corresponding holes
on the front support uprights.
The following steps can then be carried out by one person only.
Ê Release the locking mechanism of both rails (5a + 5b) and insert the server
completely into the rack (6).
5a
3
2
6
1
5b
4
4
