36 Options Guide U41593-J-Z156-2-76
Installing a second processor Processors

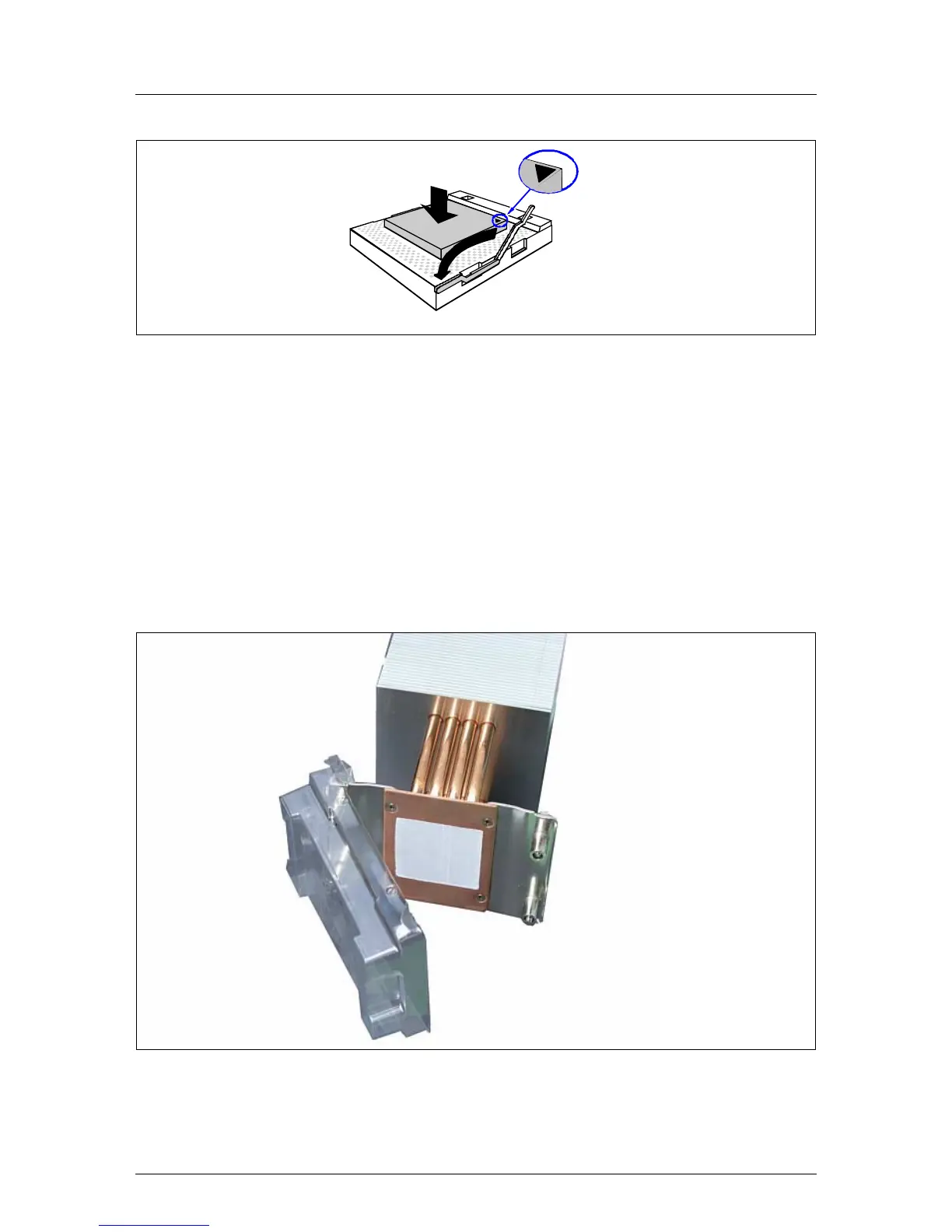

Figure 22: Inserting the processor
Ê Position the new processor over the socket and then carefully press it into
the socket (1).
V CAUTION!
The processor can only be installed in one particular direction. Note
the marking on one of the corners. To avoid damaging the pins or the
processor, do not force it into the socket.
Ê Lock the processor in place in the socket by returning the socket lifter to its
original position (2).
Figure 23: Removing the protective cover
Ê Remove the protective cover on the underside of the heat sink.
