U41593-J-Z156-2-76 Options Guide 39
Processors Installing a second processor

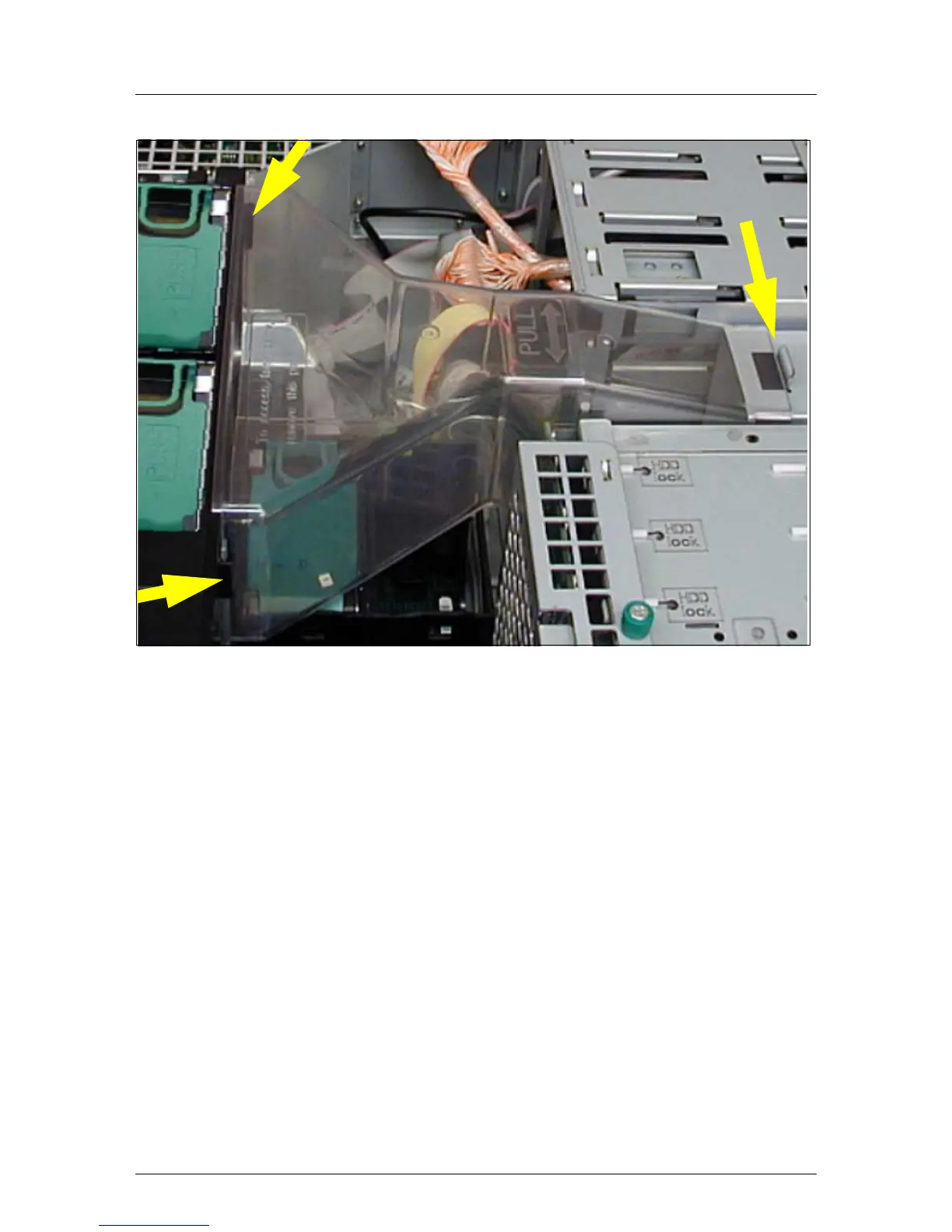

Figure 27: Installing the ventilation duct over the system fans
Ê Reinstall the ventilation duct over the system fans.
V CAUTION!
Pay attention to the guides on the processor fan holder and the housing
(see arrows).
Ensure that no damage is caused to the cables.
Ê Reinstall the ventilation duct over the main memory (see page 30).
Ê Close the server, connect it to the power outlet, and switch it on as described
in the chapter “Completion” on page 97ff.
