38 Options Guide U41593-J-Z156-2-76
Installing a second processor Processors

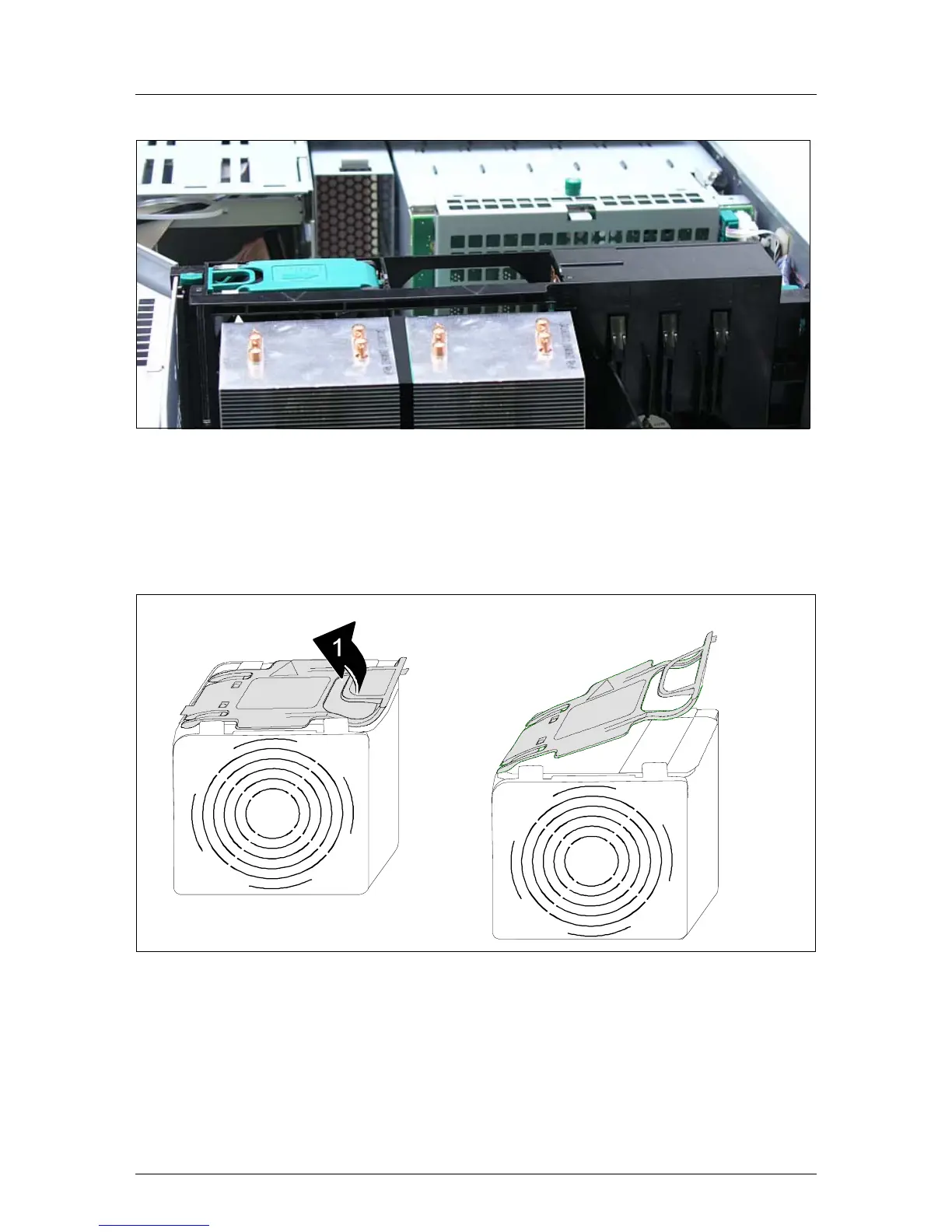

Figure 25: Installing the processor fan holder
Ê Reinstall the processor fan holder.
V CAUTION!
Ensure that the two green touchstones engage.
Figure 26: Installing a second processor fan
Ê Pull the tab up (1).
Ê Install the second processor fan in the empty mounting location in the
processor fan holder.
Ê Press the tab down until it latches in place.
