U41593-J-Z156-2-76 Options Guide 63
Controller in the PCI slots Installing a controller (PCI slot 5)

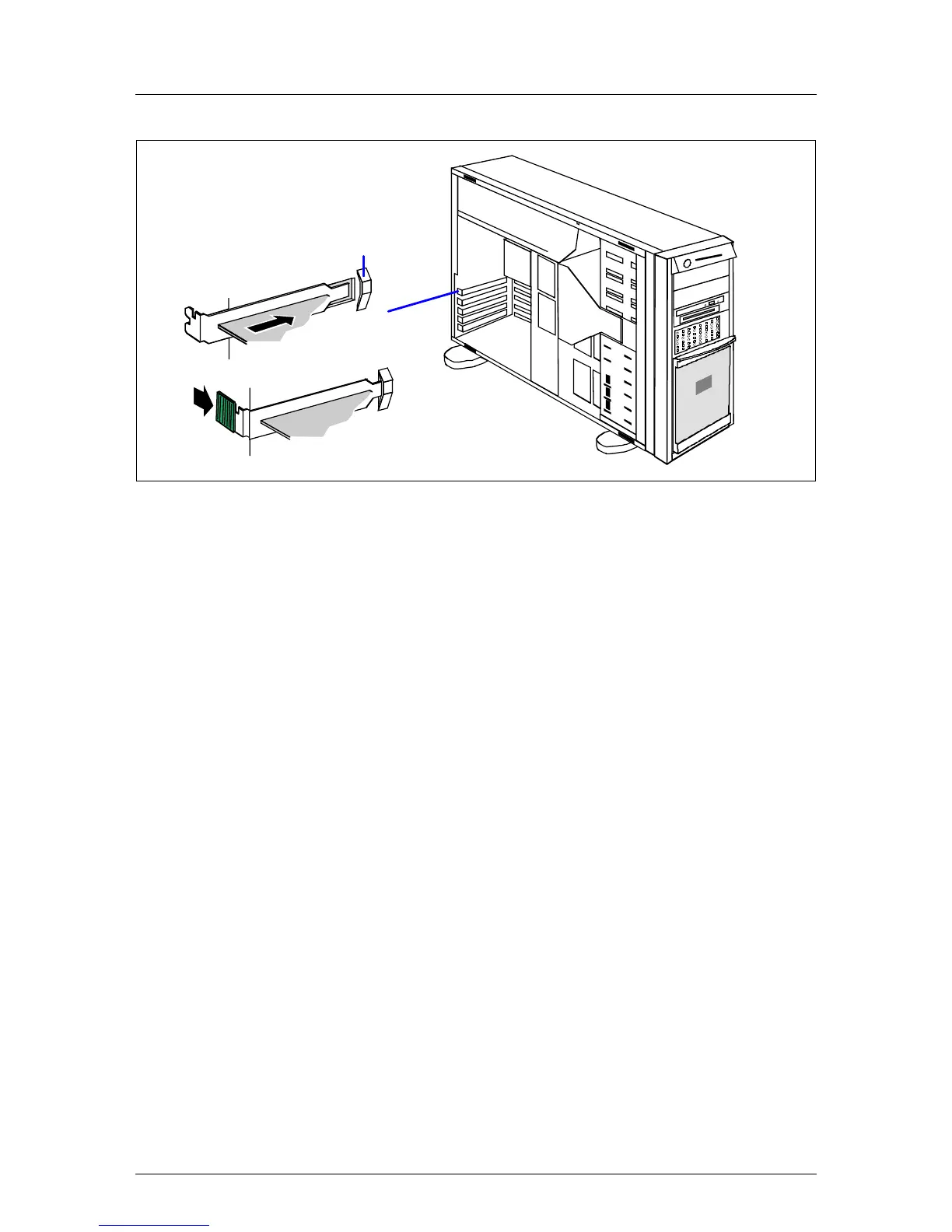

Figure 51: Installing the pull-out aid
Ê Install the pull-out aid with the controller in the PCI slot and press it carefully
into the associated plug-in location on the system board (1). Ensure that the
rear cover fits into the recess (a).
Ê Push the green fastening slider over the rear cover’s bracket (2).
Ê If required, connect the cables to the controller and other components.
Ê Close the server, connect it to the power outlet, and switch it on as described
in the chapter “Completion” on page 97ff.
1
2
a
