62 Options Guide U41593-J-Z156-2-76
Installing a controller (PCI slot 5) Controller in the PCI slots

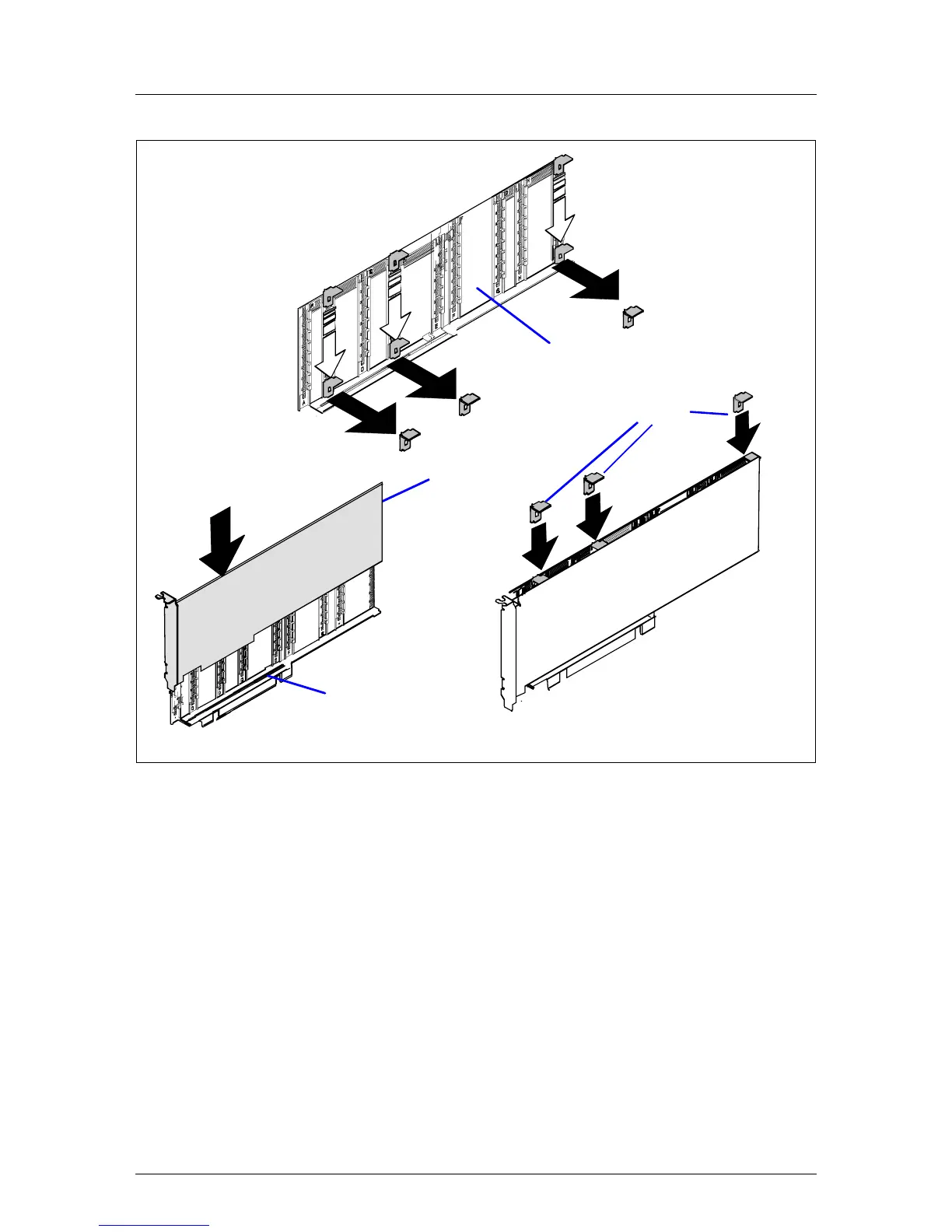

Figure 50: Installing the controller in the pull-out aid
Ê Press the green snap-fits down completely (1) until they are released from
the pull-out aid (A) and remove it (2).
Ê Place the controller (B) into the slot (C) of the pull-out aid (3).
Ê Insert and move one green snap-fit (D) down the guidances next to where
the controller is not covered by connectors. Make the snap-fit engage at the
upper edge of the board (4).
Ê Repeat the procedure with some snap-fits (D).
A
1
1
1
2
2
2
D
4
4
B
C
3
4
