90 Options Guide U41593-J-Z156-2-76
Conversion standard PS to hot-plug PS

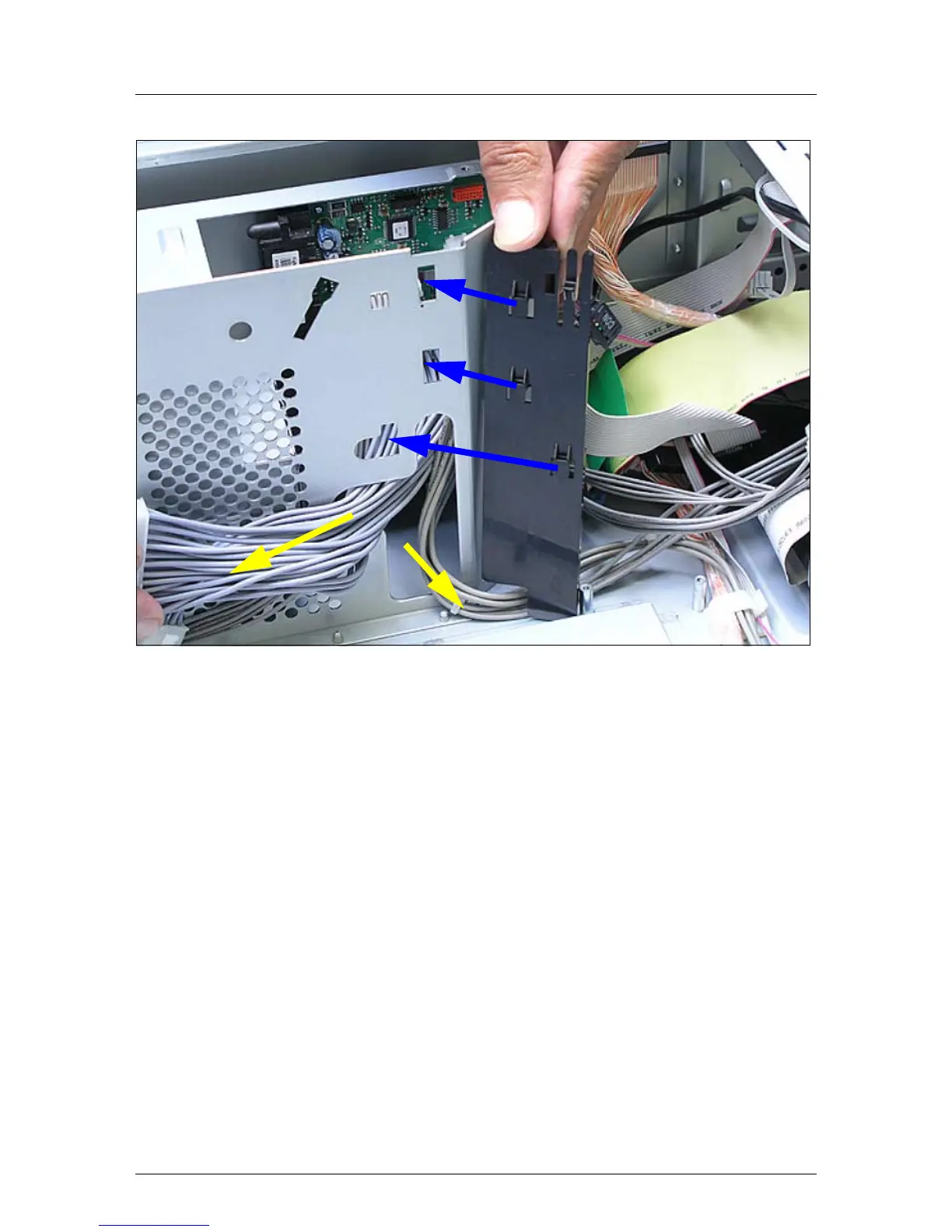

Figure 75: Replacing the guidance of the processor fan holder
Ê Lead the three shorter cables (T26139-Y3758-V8, T26139-Y3939-V2,
T26139-Y3697-V103) through the left side of the opening.
Ê Lead the three longer cables (T26139-Y3856-V4, T26139-Y3856-V5) to the
right side of the opening.
Ê Place the noses of the guidance in the recesses of the chassis and push the
guidance down until the noses engage.
V CAUTION!
Ensure that no damage is caused to the cables.
Ê Connect all power cables to the system board and the drives (see the cabling
plans in the Appendix).
