Fujitsu PRIMERGY TX200 S2 - Page 89

U41593-J-Z156-2-76 Options Guide 89
Conversion standard PS to hot-plug PS

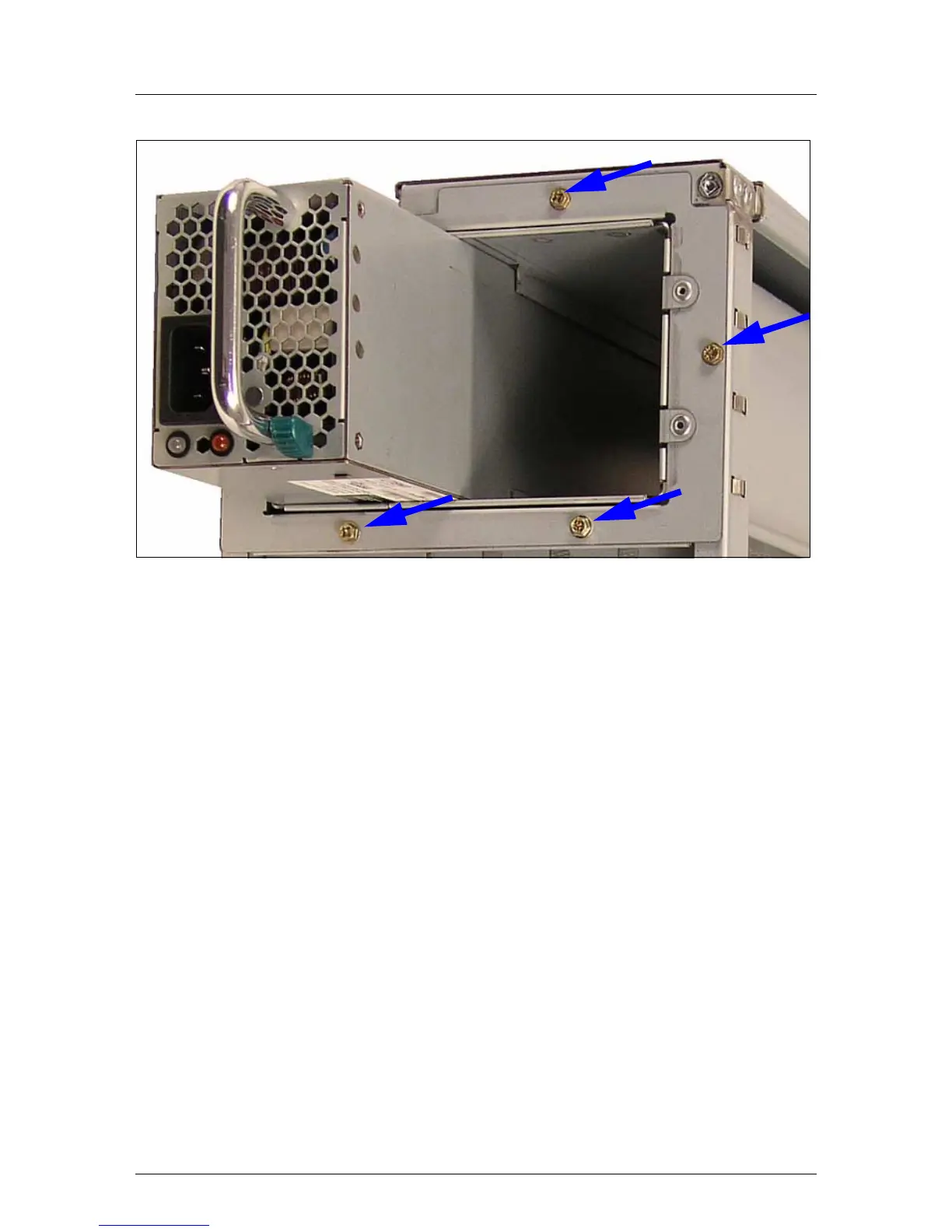

Figure 74: Fastening the PS cage
Ê Fasten the PS cage with four screws M3x4.5 mm (see arrows) at the rear
side.
Ê Push the both power supply modules in the bays of PS cage until they
engage.
