88 Options Guide U41593-J-Z156-2-76
Conversion standard PS to hot-plug PS

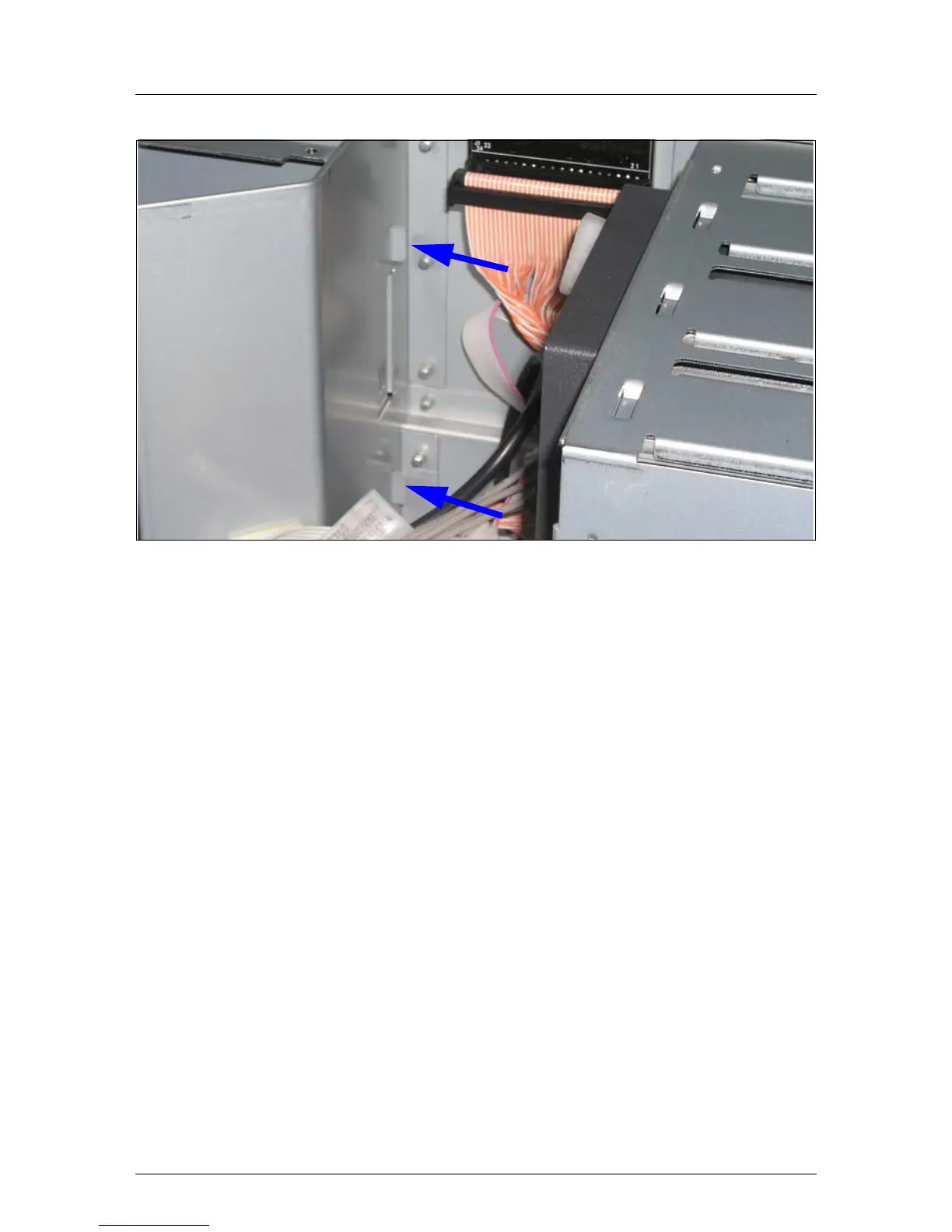

Figure 73: Installing the PS cage
Ê Push the PS cage into the bay. In the floorstand model the Power backplane
is positioned under the top cover, and in the rack model at the right-hand
side cover (seen from front side).
V CAUTION!
Make sure that the noses of the PS cage (see arrows) engage in the
chassis.
