U41593-J-Z156-2-76 Options Guide 87
Conversion standard PS to hot-plug PS

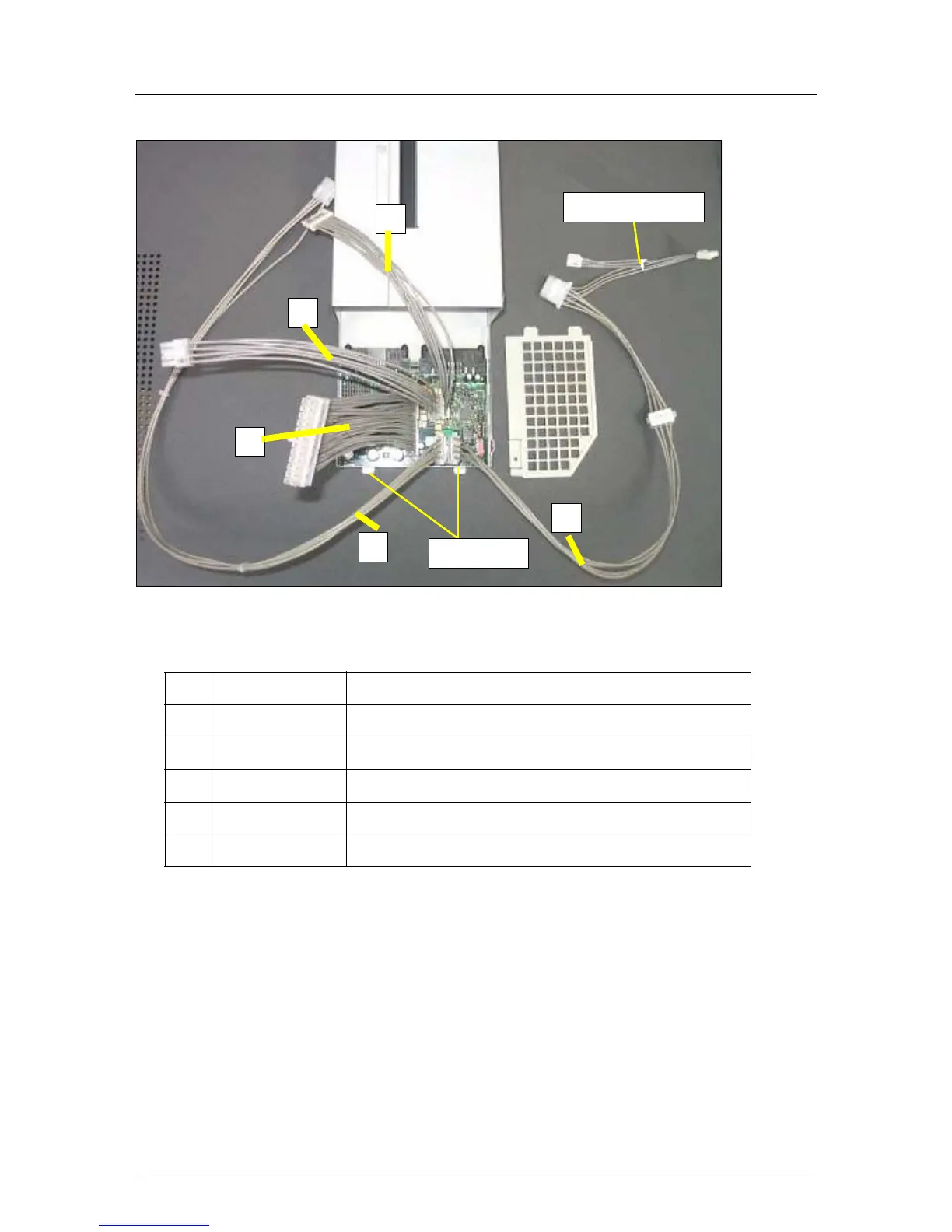

Figure 72: Connecting the cables
Ê Connect the following cables to the Xn connectors on the Power backplane:
Ê Remove the cable tie.
No. Xn connector Cable designation
1 X3 T26139-Y3758-V8 / SNP:A3C40057456
2 X4 T26139-Y3939-V2 / SNP:A3C40057635
3 X7 T26139-Y3697-V103 / SNP:A3C40058688
4 X5 T26139-Y3856-V4 / SNP:A3C40057446
5 X6 T26139-Y3856-V5 / SNP:A3C40057451
3
5
2
1
4
Noses
Cable tie
