86 Options Guide U41593-J-Z156-2-76
Conversion standard PS to hot-plug PS

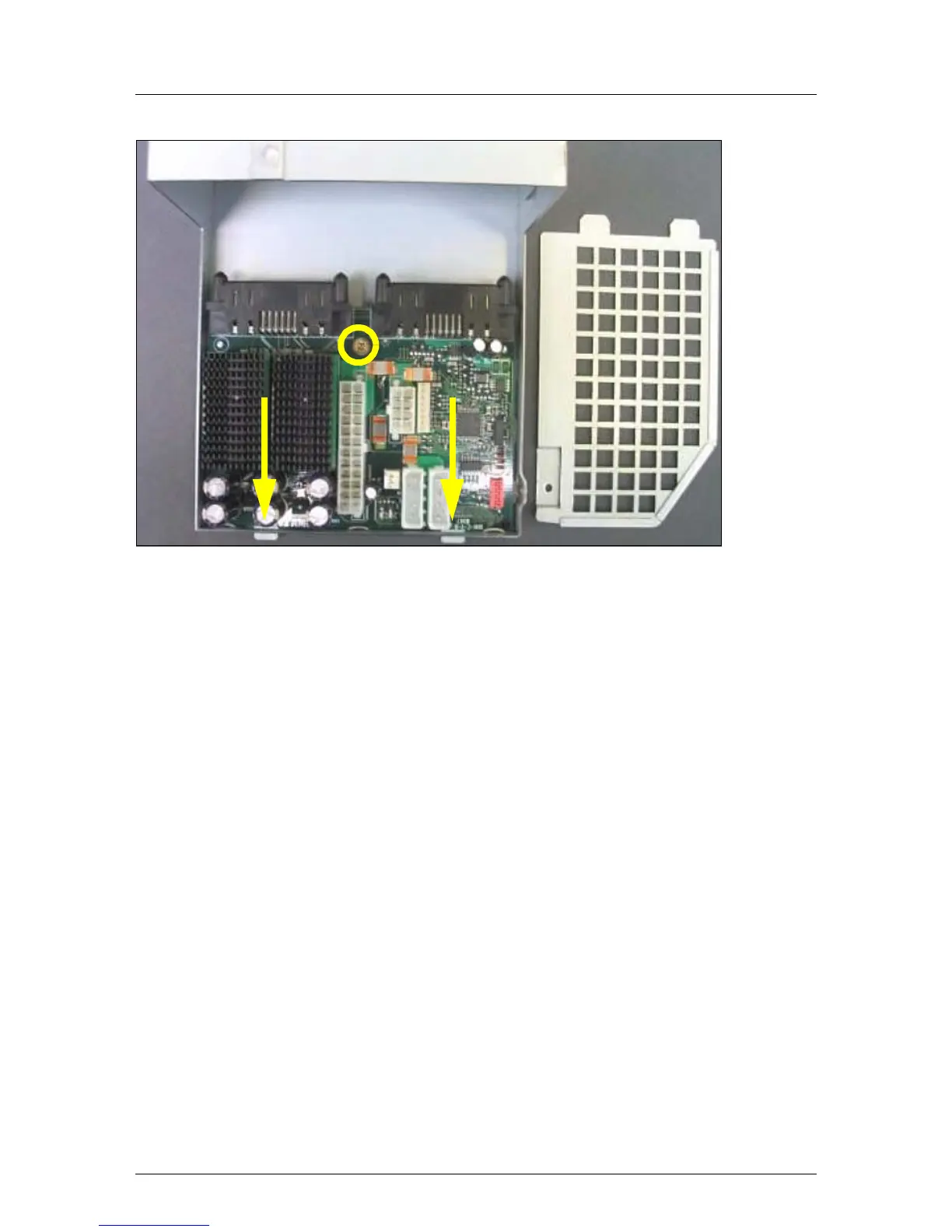

Figure 71: Installing the Power backplane in the PS cage
Ê Insert the Power backplane in the PS cage.
Ê Push the Power backplane in direction of the arrow until it engages in the
guidances of the PS cage.
Ê Fasten the Power backplane with one screw (see circle).
