Fujitsu PRIMERGY TX200 S2 - Page 85

U41593-J-Z156-2-76 Options Guide 85
Conversion standard PS to hot-plug PS

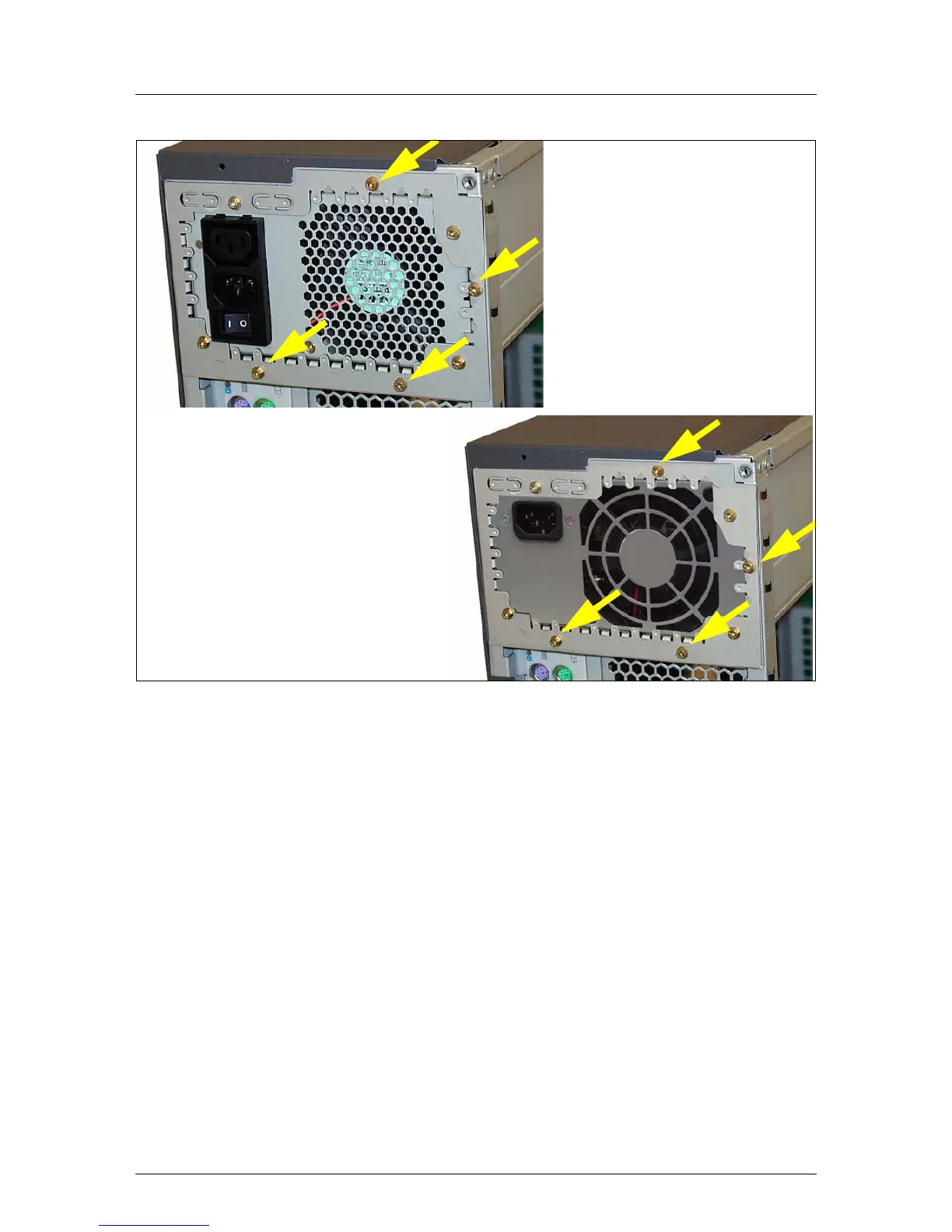

Figure 70: Loosening the screws
Ê Remove the four screws and pull the power supply unit together with the
adapter metal cover out of the server.
