MDE-3893P Encore® and Eclipse® Series Owner’s Manual · December 2011 Page 49
Periodic Maintenance Requirements Maintaining Units
To replace the receipt paper in the USB printer, proceed as follows:
1 Remove the paper roll core.
Note: To prevent paper from being trapped inside the printer, the printer automatically
reverses the last short receipt left from the paper roll. Remove such receipts along with
the paper roll core, if present.

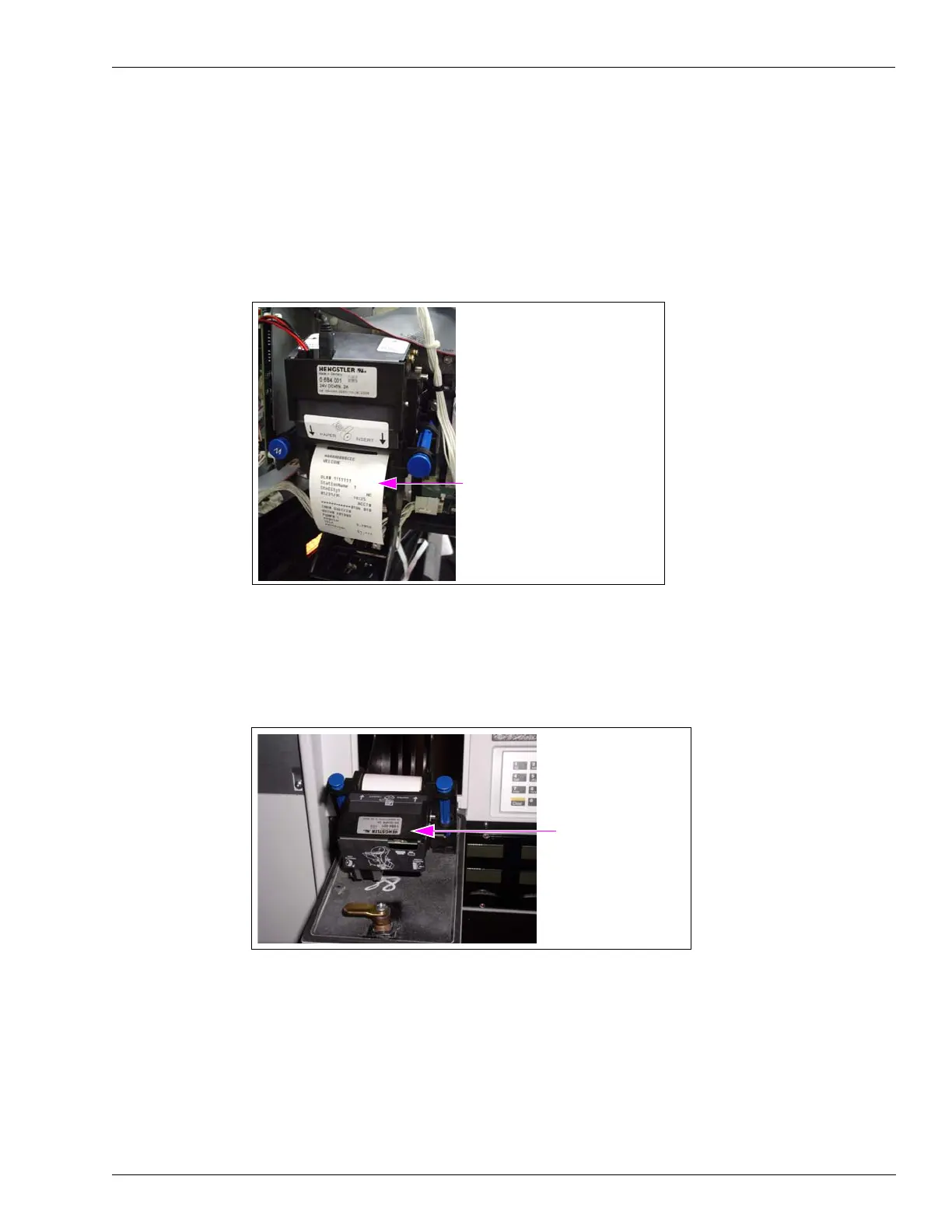

Figure 5-10: Paper Removal
Paper must be removed properly to
prevent paper jamming.
Note: In Encore S series, the printer is installed in an inverted manner, as you open the printer
door as shown in
Figure 5-11. Apart from the way in which the printer is installed, the
procedure for changing the receipt printer paper remains as explained in this section.
Figure 5-11: Printer in the Encore S Series Unit
Printer Control Module
2 Locate the paper removal trigger on the left-hand side of the printer. This is located directly
under the “Remove Paper” trigger decal. For the exact location of the trigger, see
Figure 5-12
on page 50.
