This chapter presents the individual hardware components of your device. It gives an
overview of the indicators and connections of the device. Please familiarize yourself
with these items before you sta rt to work with the device.
Front (device versio n withou t hand vein sen sor)
Depending on your selected device version, your tablet PC may be equipped with a hand
vein sensor on the right-hand side, see "Right side" sub-section on the following pages.
1
2
3
4
5
5
4
7
9
8
6

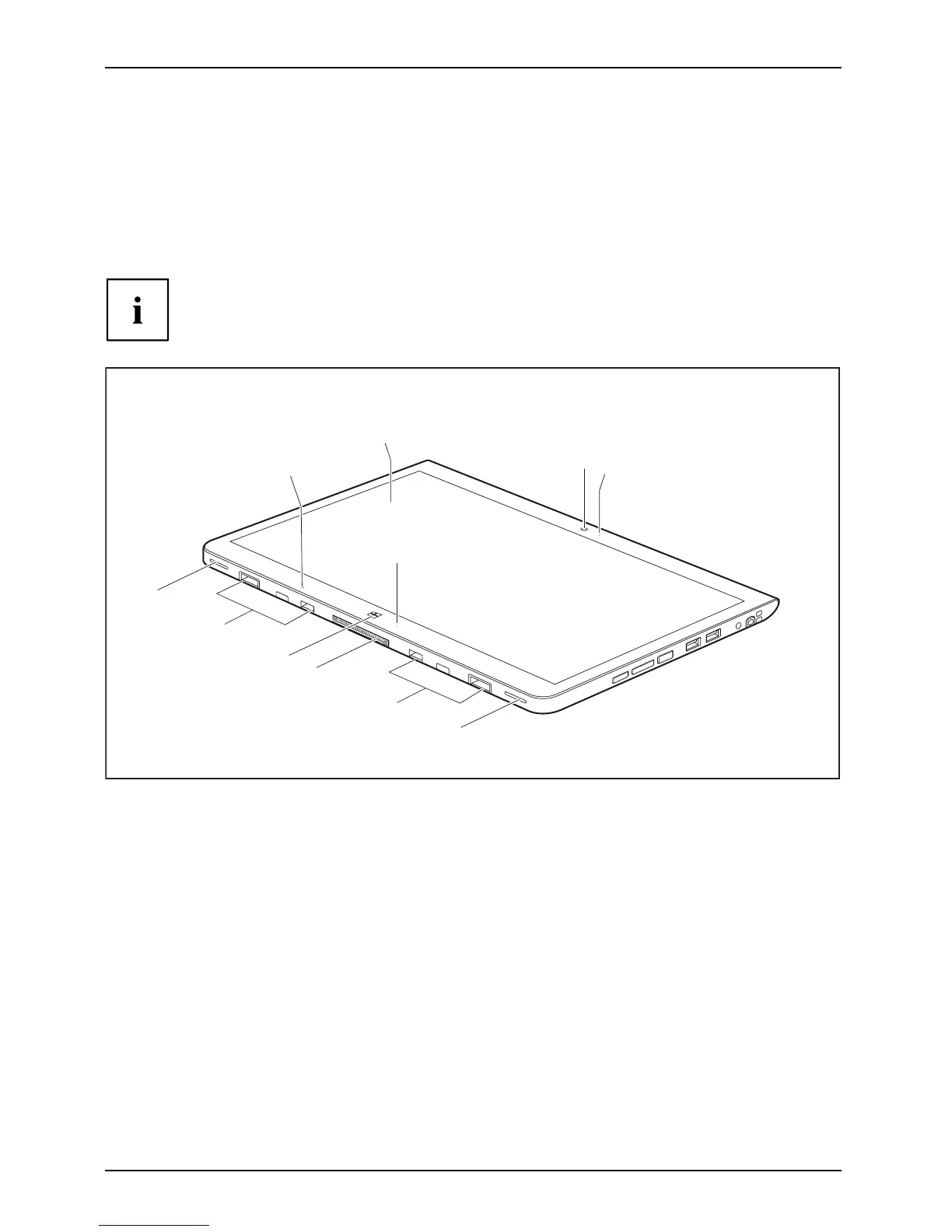

1 = Touch screen
2 = Webcam
3 = Webcam LED
4 = Speaker
5 = Mechanical mounting for (power) keyboard
docking station / cradle
6 = Power-on indicator
7 = Docking port
8 = Windows button
9 = Ambient light sensor
