12.3.1 Heldal unit mounting

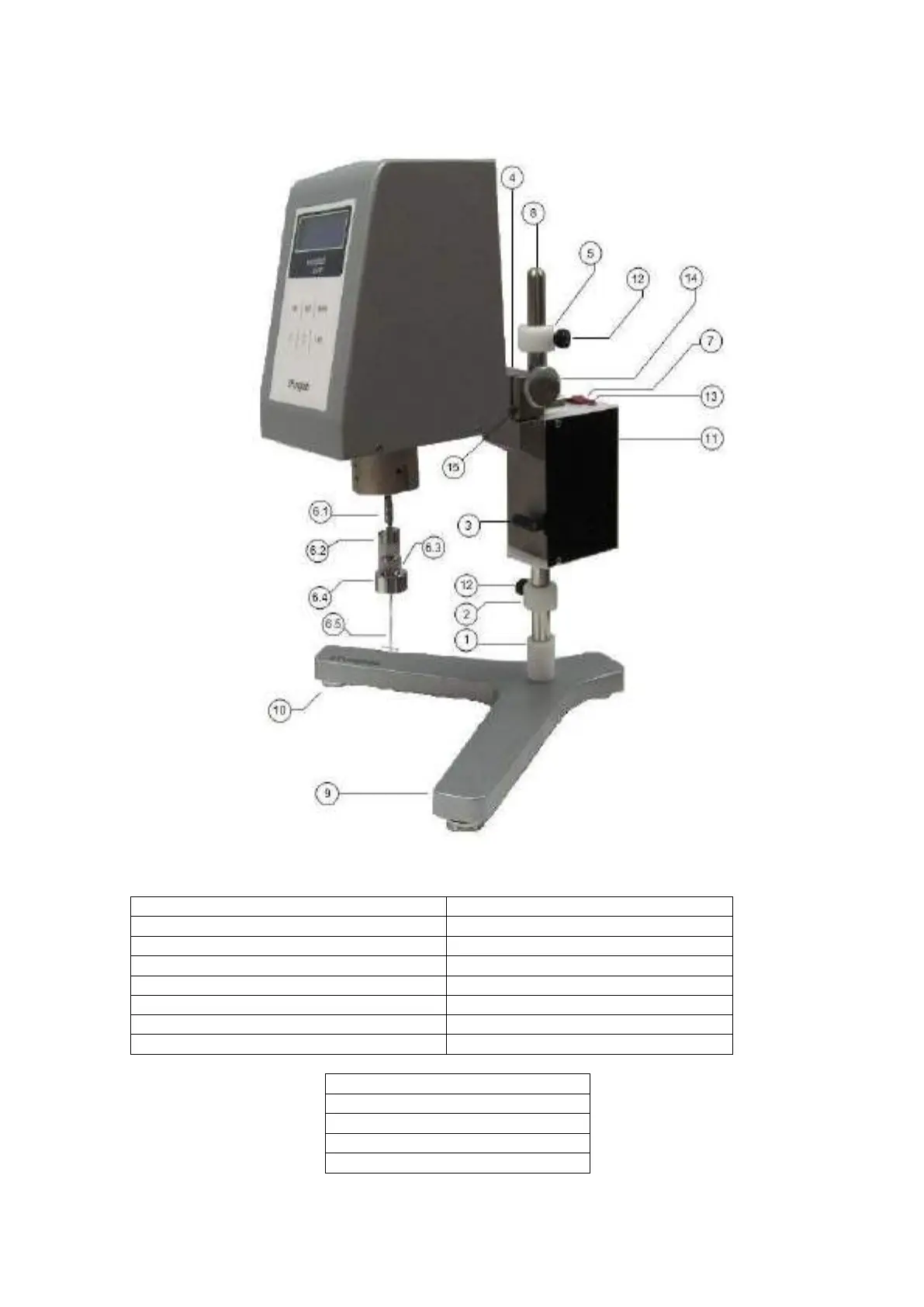

Fig. 16 Heldal unit set in the viscometer
1. Rib joint
9. Base
2. Lower stop ring
10. Levelling knobs
3. Displacement command
11. Heldal engine unit
4. Viscometer fastening bolt
12. Knobbed fastening rib
5. Upper stopper ring
13. Functioning pilot
6. Heldal fastening group
14. Nut bolt
7. ON/OFF switch
15. Viscometer fastening rib
8. Fastener
6.1 Spindle connector
6.2 Upper spindle receptor
6.3 Lower spindle receptor
6.4 Counterweight, spindle connector
6.5 Spindle
