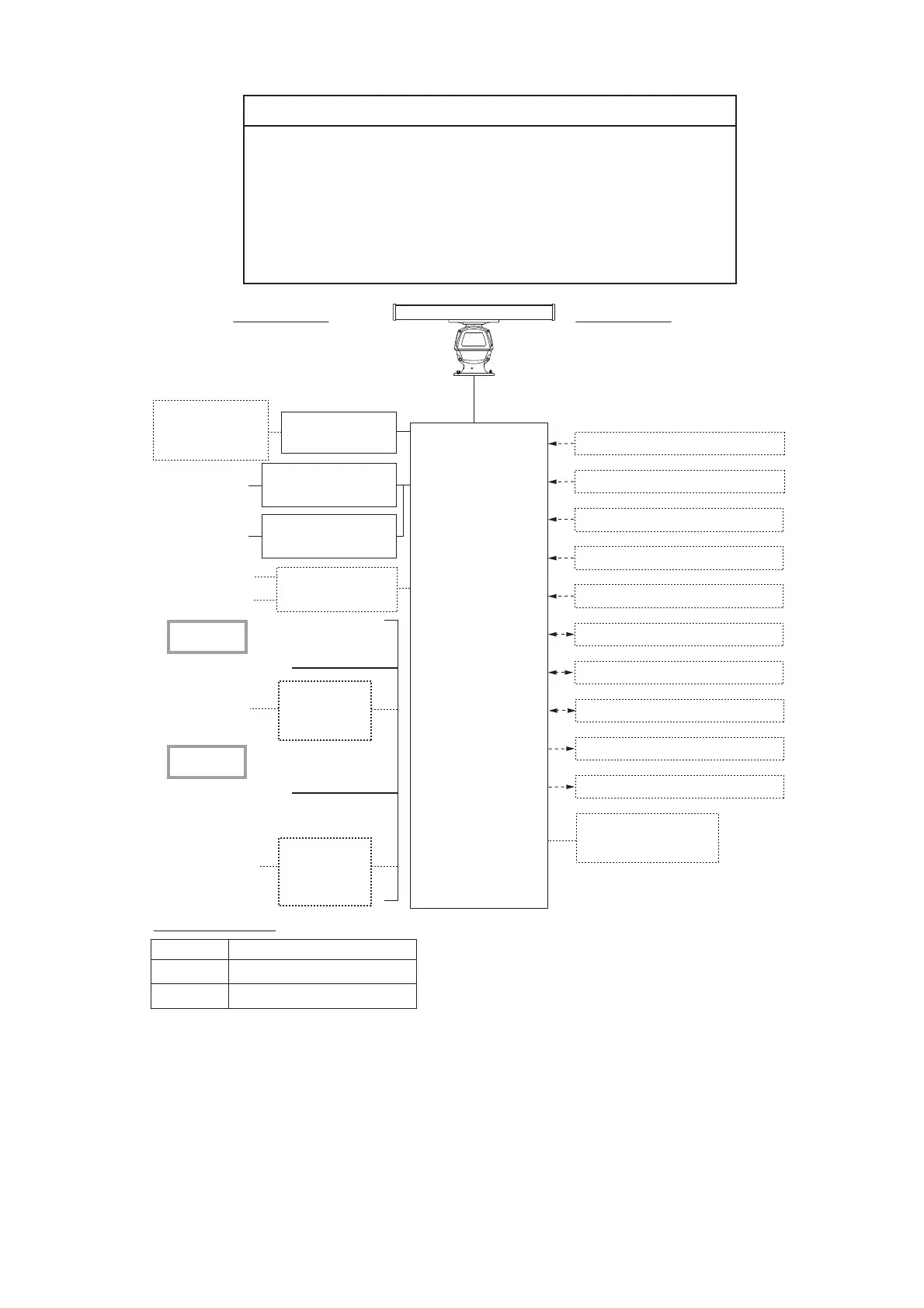

Equipment category
ANTENNA UNIT
PROCESSOR UNIT
RPU-024
12-24 VDC
Unit Category
Antenna Exposed to the weather
Other units Protected from the weather
CONTROL UNIT
RCU-028
TRACKBALL
CONTROL UNIT
RCU-030
DISPLAY UNIT
MU-150HD(-CV15)*
2
DISPLAY UNIT
MU-190*
2
SWITCHING HUB
HUB-100
100-230 VAC
1ø, 50-60 Hz
100-230 VAC
1ø, 50-60 Hz
Interswitch
DC Spec.
24 VDC
Rectifier
RU-1746-B-2
RU-3424
440 VAC
1ø, 50-60 Hz
AC Spec.
Stepdown
Transformer
Unit
RU-1803
100/110/115
200/220/230
1ø, 50-60 Hz
Gyrocompass *
1
, AD-10 format
Gyrocompass *
1
, IEC61162 format
AIS Transponder
EPFS (GPS)
SDME (Speed log)
AMS, IEC61162 format
ECDIS
AMS (Contact)*
3
Sub Display 1
Sub Display 2
FAR-1518(-BB)
XN12AF-RSB-120-100
XN12AF-RSB-121-100
XN20AF-RSB-120-100
XN20AF-RSB-121-100
FAR-1528(-BB)
XN20AF-RSB-120-101
XN20AF-RSB-121-101
XN24AF-RSB-120-101
XN24AF-RSB-121-101
The radar(s) must be interconnected to the following type approved sensors:
• Gyrocompass meeting requirements of the IMO resolution A.424(XI).
• EPFS meeting the requirements of the IMO resolution MSC.112(73).
• SDME meeting the requirements of the IMO resolution MSC.96(72).
The radar may be interconnected via HUB-100 to other FURUNO processing
units having approved LAN ports.
The following sentences cannot be used for installations on SOLAS vessels:
BWC, BWR, DBK, GBS, HDG, HDM and TLL.
NOTICE FOR FAR-1518(-BB)/FAR-1528(-BB)
VDR
or
Analog RBG Monitor
*1: The gyrocompass must also have an update rate that is adequate for the ship’s rate of turn.
The update rate must be better than 40 Hz (HSC) or 20 Hz (conventional vessel).
*2:This monitor have been approved by the IMO, MU-150HD(-CV15) for CAT 3, MU-190 for CAT-2.
If a different monitor is to be used on IMO vessels, its effective diameter must meet the applica-
ble Category requirements (CAT 3: Effective diameter 180 mm or higher; CAT 2: Effective
diameter 250 mm or higher). For installation, operation and viewing distance of other monitors,
see their respective manuals. For BB types, a monitor is to be prepared by the user.
*3: Characteristics of contact output for AMS (Alert Management System):
• (Load current) 250 mA
• (Polarity) Normally Open: 2 ports, Normally Close: 2 ports
100/110/115/200/
220/230 VAC
1ø, 50-60 Hz
To Next Page
