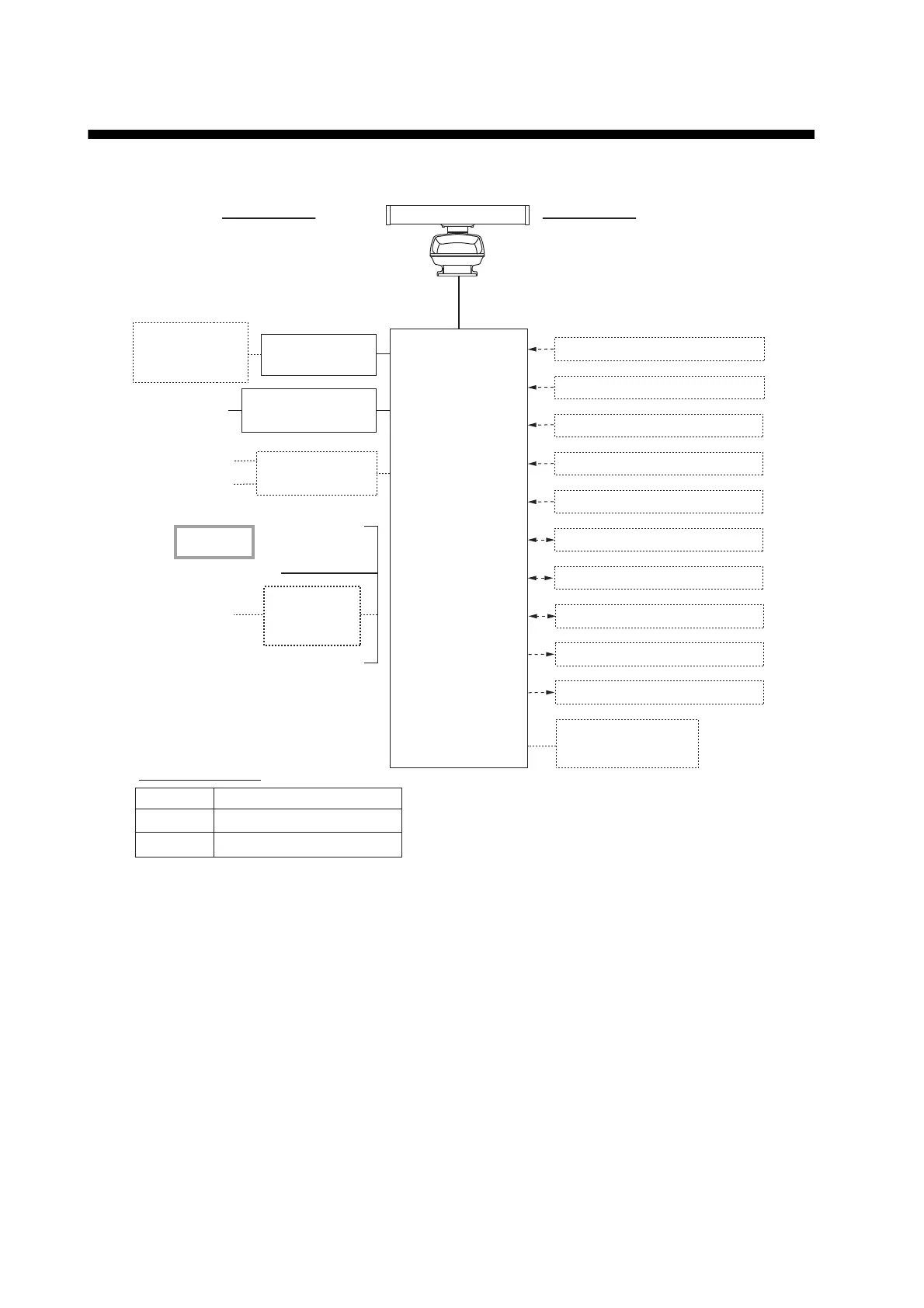

SYSTEM CONFIGURATION
ANTENNA UNIT
FAR-1513(-BB)
XN12A-RSB-0070-086A
XN12A-RSB-0073-086A
XN13A-RSB-0070-086A
XN13A-RSB-0073-086A
FAR-1523(-BB)
XN12A-RSB-0070-087A
XN12A-RSB-0073-087A
XN13A-RSB-0070-087A
XN13A-RSB-0073-087A
Equipment category
100/110/115/200/
220/230 VAC
1ø, 50-60 Hz
PROCESSOR UNIT
RPU-024
12-24 VDC
Unit Category
Antenna Exposed to the weather
Other units Protected from the weather
CONTROL UNIT
RCU-028
TRACKBALL
CONTROL UNIT
RCU-030
DISPLAY UNIT
MU-150HD(-CV15)*
2
SWITCHING HUB
HUB-100
100-230 VAC
1ø, 50-60 Hz
Interswitch
DC Spec.
24 VDC
Rectifier
RU-1746-B-2
RU-3424
Gyrocompass *
1
, AD-10 format
Gyrocompass *
1
, IEC61162 format
AIS Transponder
EPFS (GPS)
SDME (Speed log)
AMS, IEC61162 format
ECDIS
AMS (Contact)*
3
Sub Display 1
Sub Display 2
VDR
or
Analog RBG Monitor
*1: The gyrocompass must also have an update rate that is adequate for the ship’s rate of turn.
The update rate must be better than 40 Hz (HSC) or 20 Hz (conventional vessel).
*2:This monitor have been approved by the IMO, MU-150HD(-CV15) for CAT 3. If a different monitor is
to be used on IMO vessels, its effective diameter must meet the applicable Category requirements
(CAT 3: Effective diameter 180 mm or higher). For installation, operation and viewing distance of
other monitors, see their respective manuals. For BB types, a monitor is to be prepared by the user.
*3: Characteristics of contact output for AMS (Alert Management System):
• (Load current) 250 mA
• (Polarity) Normally Open: 2 ports, Normally Close: 2 ports
