6 Modifications to the basic vehicle
6.10 Installation of propeller shafts
MITSUBISHI FUSO body/equipment mounting directives for FE Issue date: 20. 10. 2020
! Only print out complete sections from the current version

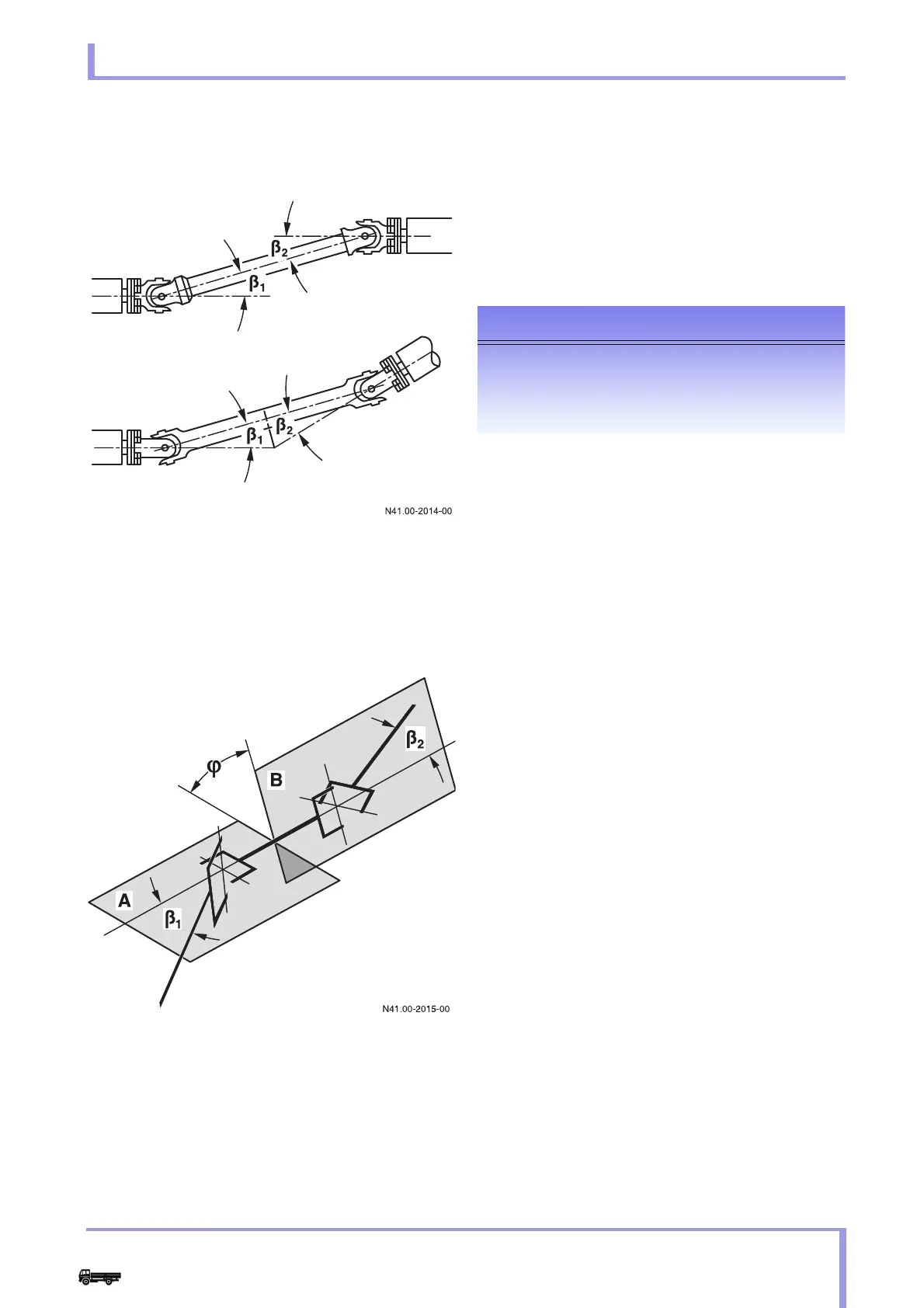

6.10.1 Types of angular offset
With three-dimensional offset, the input and output
shafts intersect in different planes (combined W- and
Z-offset).
In order to compensate for any irregularities, the inner
joint fork must be offset.
Angle in one plane (two-dimensional offset)
ß
1
= ß
2
Upper = Z-type offset
Lower = W-type offset
Angles in two planes (three-dimensional offset)
ß
1
= ß
2
! Property damage
Failure to observe these instructions could result in
damage to the major assemblies.
