4 Technical threshold values for planning
4.4 Clearance for the basic vehicle and bodies
MITSUBISHI FUSO body/equipment mounting directives for FE Issue date: 20. 10. 2020
! Only print out complete sections from the current version
4.4 Clearance for the basic vehicle and bodies
Certain clearances must be maintained in order to
ensure the function and operational safety of
assemblies.
Dimensional data in the body/equipment mounting
directives must be observed.
The minimum clearance between chassis parts and
rear body parts must be kept according to the
following table of minimum clearance standard.
4.4.1 Minimum clearance and notes
Section behind cab
In the section behind the cab, there are a cab tilt
locking unit, etc. Ensure there is a clearance of at least
100 mm between the cab and rear body to facilitate
trouble-free operation, inspection and filling works.
Provide a protector in order to prevent loads from
falling from the rear body front window of the dump or
other rear body.
Areas around motor generator
Vertical direction 40 mm
Lateral direction 30 mm
Longitudinal direction 25 mm
Motor generator assembly
Do not install any rear body part in the area of 100 mm
of rear part, because motor generator assembly is
moved backward in the same inclination line of motor
generator, to pull out the spline shaft, when motor
generator is removed.
Surrounding part of the propeller shaft and the
rear axle
Min. 25 mm of the surrounding part.
Brake hose (which connects to the front and rear
wheel)
Keep min. 50 mm of clearance at worst. This brake
hose is considered to move when vehicle is driven.
Other hoses
40 mm

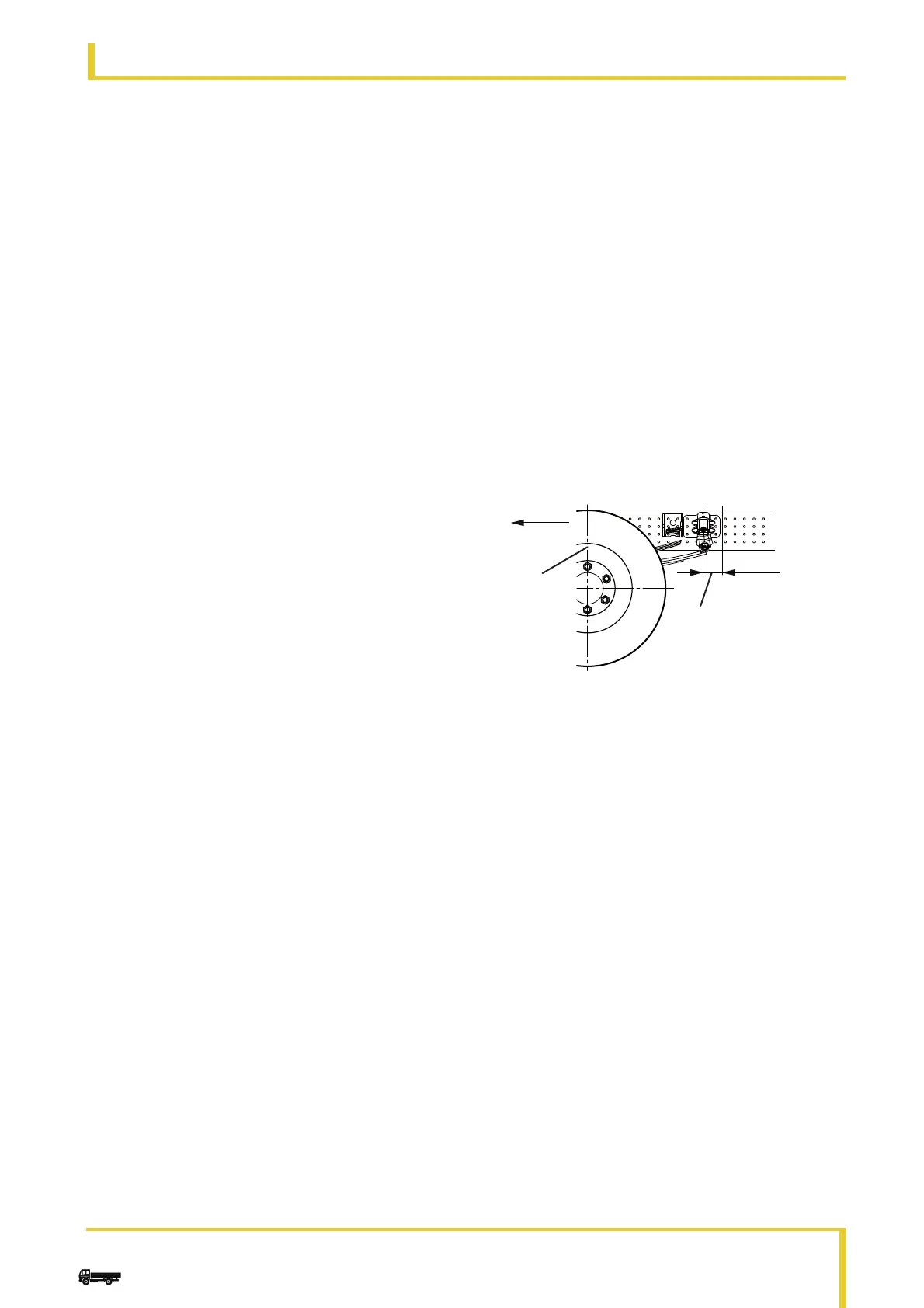

Rear springs
The link at the rear of the main spring may move while
driving. Do not fit any mounting hardware within the
range indicated in the figure.
1Front of vehicle
2 Rear axle center line
3 No components may be attached in this area
